Method and apparatus for producing microporous metal foil
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Jul 16, 2015
filing date -
Oct 21, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

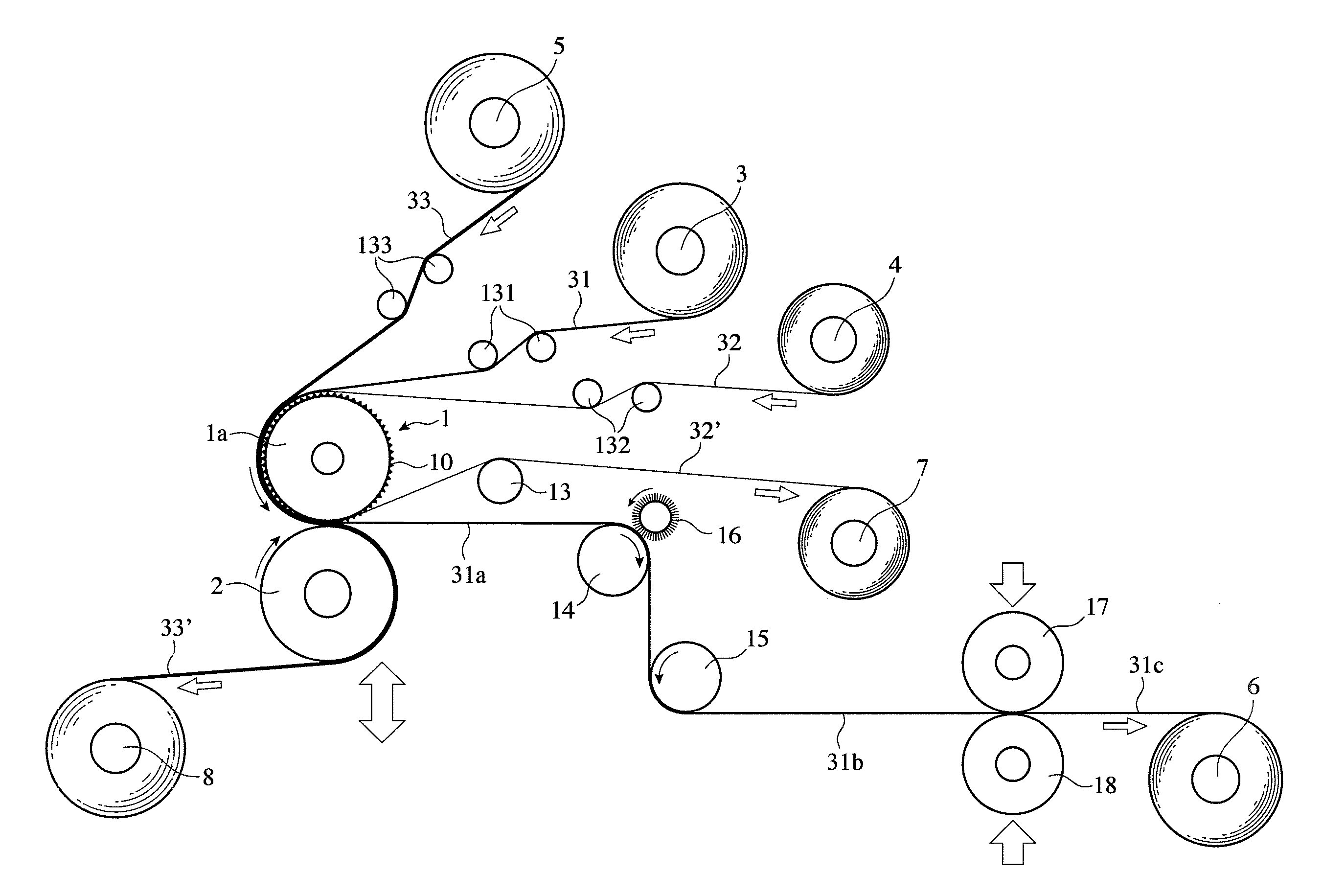

A method and an apparatus for producing a microporous metal foil comprising (a) passing a metal foil through a gap between a pattern roll having large numbers of high-hardness, fine particles on the surface and a hard roll while pressing, to provide the metal foil with large numbers of fine penetrating pores, with a thin hard plastic film interposed between the metal foil and the pattern roll, and a thick soft plastic film interposed between the metal foil and the hard roll; and (b) adjusting tension applied to each of the metal foil, the hard plastic film and the soft plastic film to such an equal level that the metal foil is not broken during forming the fine penetrating pores.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
