System and method for producing pelleted animal feed blocks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 15, 2018
Issued Date -
N/A
app pub date -
Oct 18, 2013
filing date -
Oct 18, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

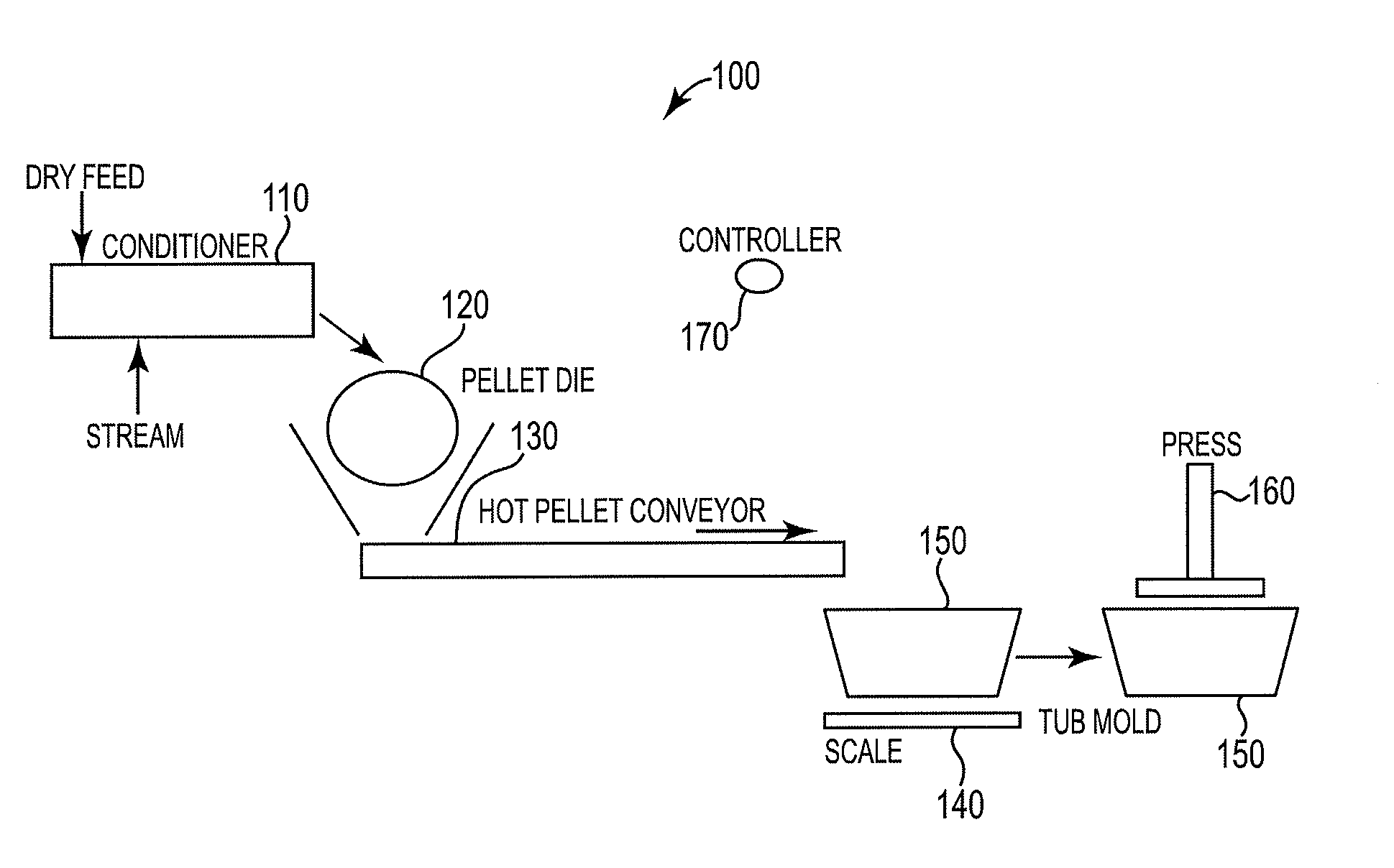

Animal feed blocks composed of feed pellets are formed by conditioning a meal of a particulated animal feed mixture through heating the meal using steam to cause at least one of the feed components in the feed mixture to bind the meal. The heated meal is mechanically forced through a die to compress the meal into heated pellets. The heated pellets are collected in a pre-formed mold and are compressed in their heated state resulting in the pellets combining to form the animal feed block in the shape of the mold. Systems may use a pellet mill and a hydraulic press where conditioning and pellet formation takes place in the pellet mill and formation of the animal feed block is through compressing a collection of heated pellets using the hydraulic press.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2013 Application Filing Year
- A23K Class
- 258 Applications Filed
- 178 Patents Issued To-Date
- 69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A23K Class
- 63.44 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 15, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 15, 2029 |
