Method for manufacturing silicon carbide semiconductor device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9966437
SERIAL NO

14896973

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

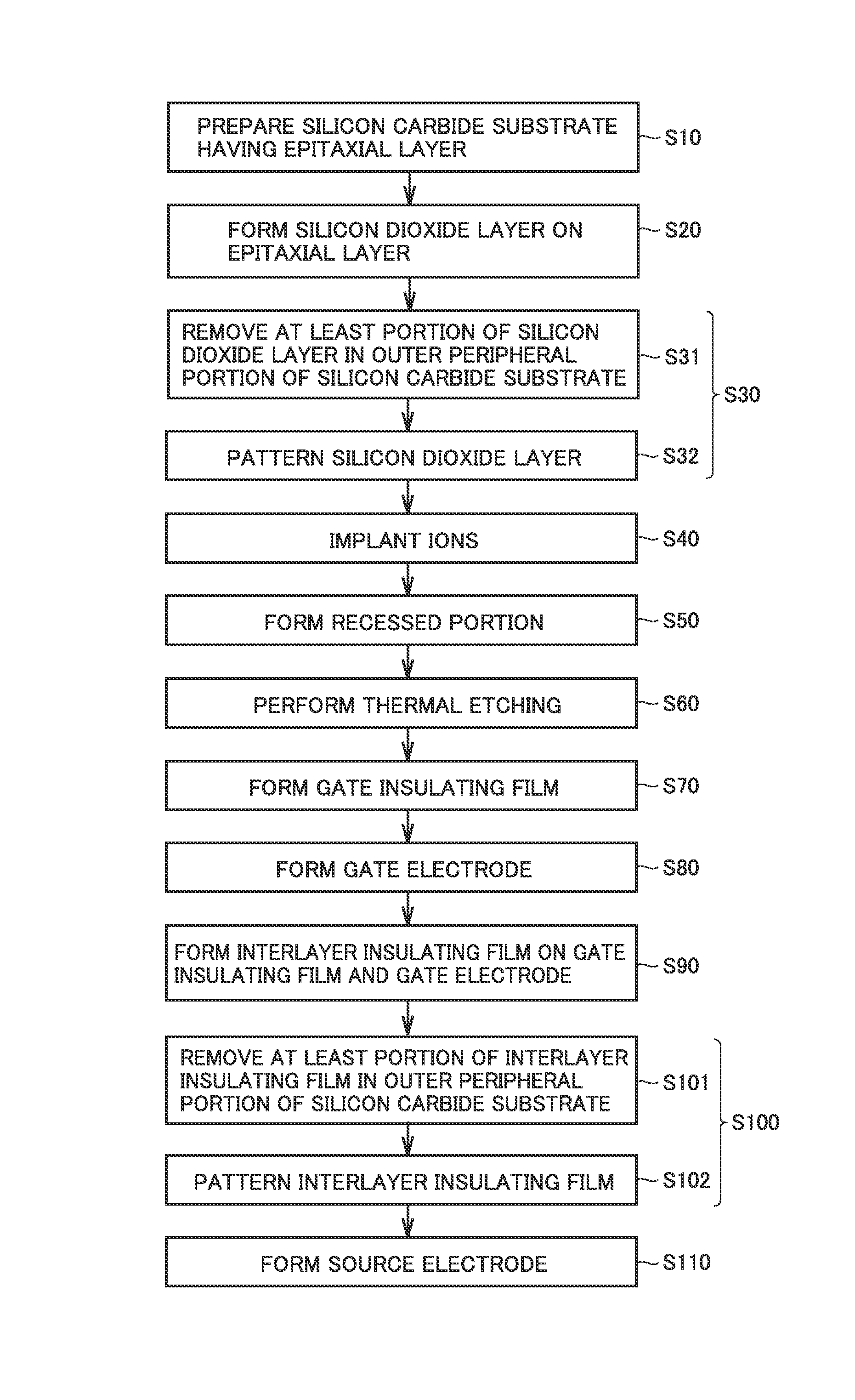

Included are the steps of: preparing a silicon carbide substrate having an epitaxial layer formed thereon; forming an upper-layer film on the epitaxial layer; and removing at least a portion of the upper-layer film in an outer peripheral portion of the silicon carbide substrate, and patterning the upper-layer film.
