Diagnostic method for a weighing cell
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 8, 2018
Grant Date -
Jan 14, 2016
app pub date -
Sep 24, 2015
filing date -
Mar 28, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

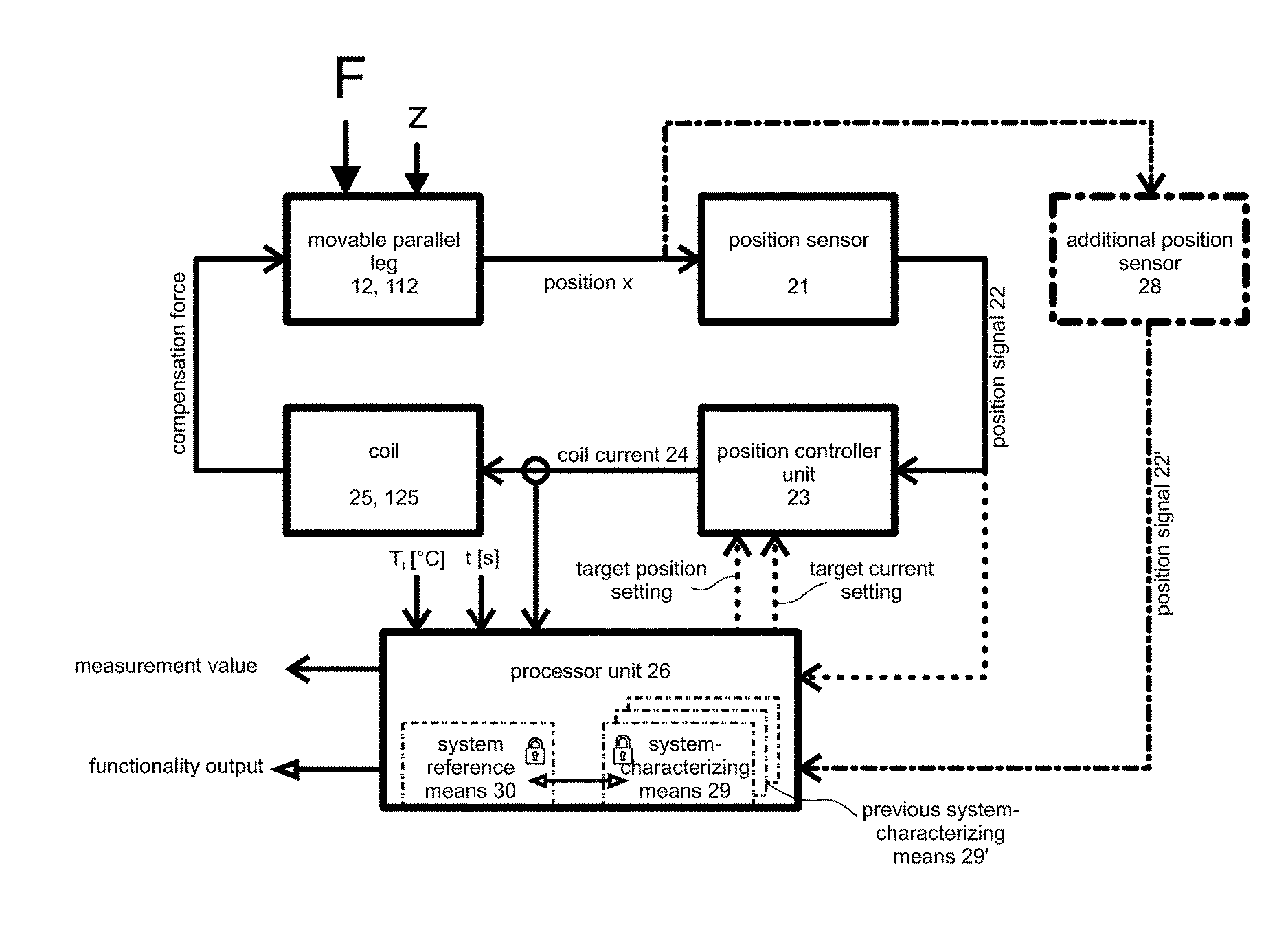

A force-measuring device (1) with a parallelogram linkage has a measurement transducer coupled to it. A coil (25) of the transducer has guided mobility in a magnet system (27) and can carry an electric current (24). A position sensor (21) detects the deflection of the coil (25) from a balanced position relative to the magnet system when a load is placed on the force-measuring device. The electric current (24) flowing through the coil (25), by way of the interaction between the coil and the magnet system, returns the coil and the movable parallel leg to the balanced position. A system-characterizing means (29) is established in a processor unit (26). The system-characterizing means and an unchangeable system reference means (30) are compared to determine the functionality of the device. The functionality is verified by the magnitudes of the electric current and the deflection of the coil from its balanced position.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01G Class
- 267 Applications Filed
- 208 Patents Issued To-Date
- 77.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 8, 2029 |
