Press to flatten bamboo stalks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 8, 2018
Issued Date -
N/A
app pub date -
Nov 9, 2015
filing date -
Nov 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

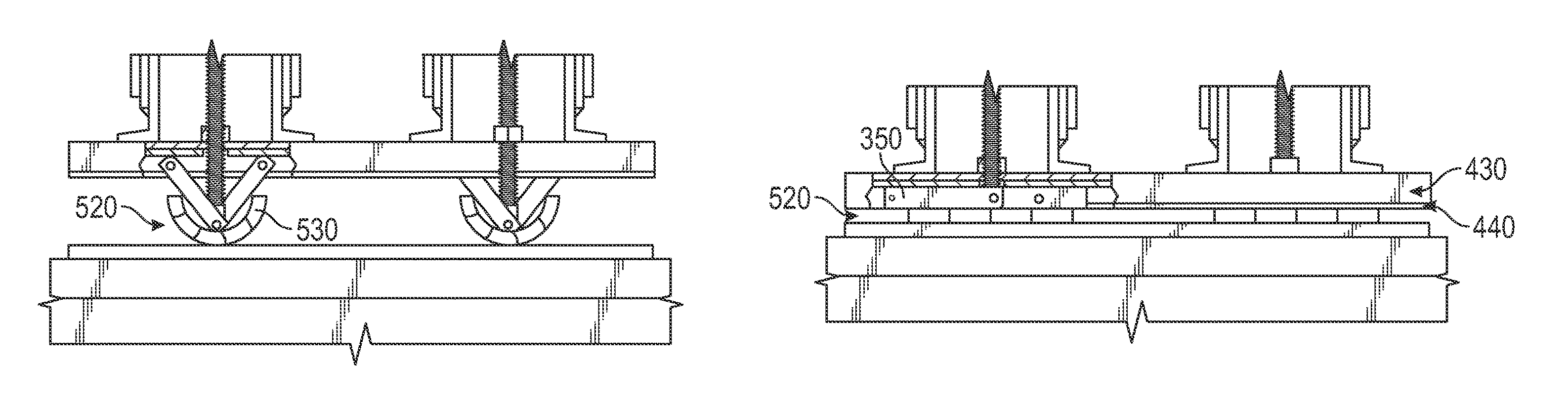

A disclosed press 100 may flatten halved bamboo stalks or other workpieces without loss of volume or splintering. In a first mechanical movement executed by a pushrod drive train 300, a plurality of spreader bar assemblies 370 press upon the centerline of a workpiece such that the workpiece does not move off of a work surface but is yet not over crushed. Each spreader bar assembly may comprise two spreader bars 350 hingedly attached to a pushrod 345. The lower end of the pushrod and proximal ends 363 of the spreader bars pin down the workpiece. In a second mechanical movement executed by a crusher bar drive train 400, the distal ends of the spreader bars are moved outwardly and spread apart the curved walls of the workpiece. In the last phases of a second movement, planar track plates 440 press downwardly upon the workpiece.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B27N Class
- 64 Applications Filed
- 52 Patents Issued To-Date
- 81.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B27N Class
- 40.22 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 8, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 8, 2029 |
