Sound producing apparatus, keyboard instrument, and sound production control method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
Dec 18, 2015
filing date -
Mar 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

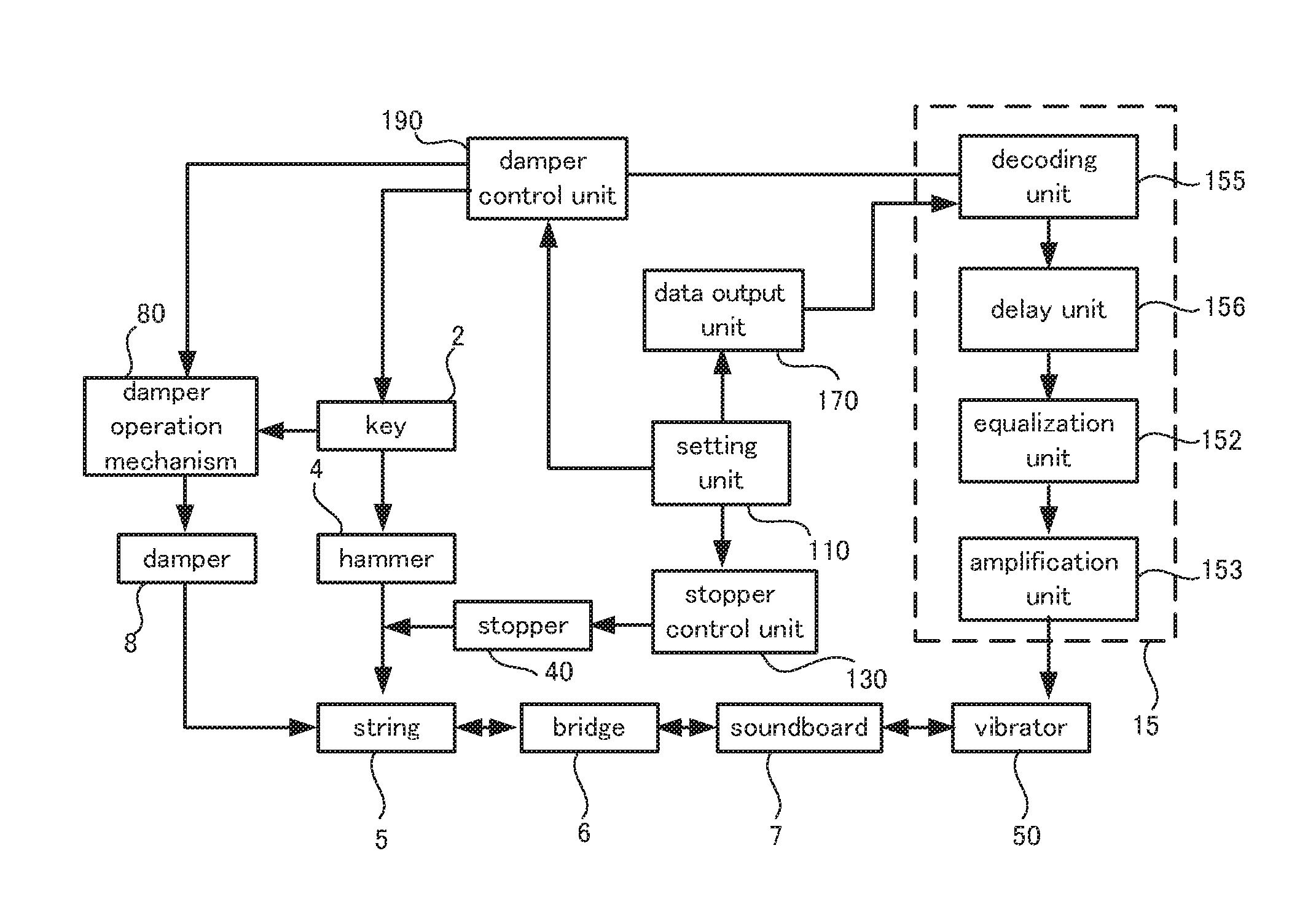

A sound producing apparatus includes: a plurality of sound producing members with differing oscillation frequencies; dampers each corresponding to a respective sound producing member and suppressing vibration by contacting the corresponding sound producing members; a damper operation mechanism that moves each damper, thereby controlling a state of contact of the damper with a corresponding sound producing members; a soundboard that undergoes sympathetic resonance with sound producing members; a vibrator that vibrates the soundboard; an acquisition unit configured to acquire an audio signal; a signal output unit configured to: generate a drive signal for driving the vibrator with a vibration corresponding to the acquired audio signal; and output the drive signal to the vibrator; and a damper control unit configured to drive the damper operation mechanism to change a state of contact between the sound producing members and their corresponding dampers, based on frequency distribution of acquired audio signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G10H Class
- 279 Applications Filed
- 253 Patents Issued To-Date
- 90.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G10H Class
- 21.36 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 1, 2029 |
