Method and arrangement for determining location and/or speed of a moving object and use of the arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
Jun 30, 2014
filing date -
Dec 30, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

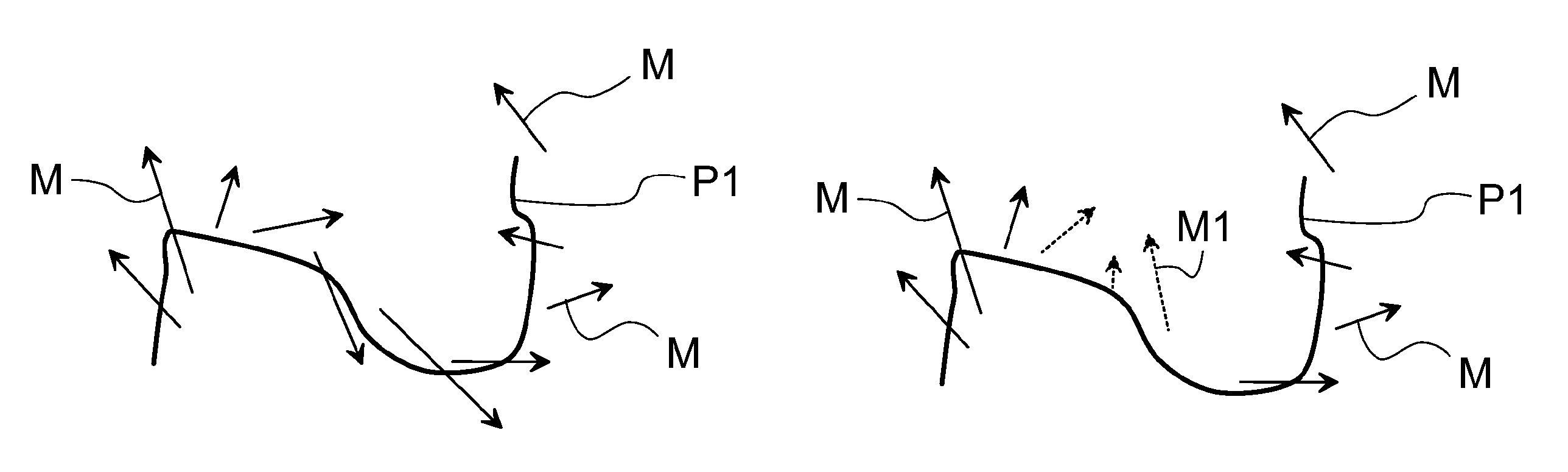

A method and an arrangement is provided for determining the location and/or speed of an object configured to move along a controlled trajectory, in connection with which object is fitted a measuring device measuring at least the magnetic field acting on the object in its different locations, which measuring device comprises a device configured to measure the magnetic field, from the measuring data received from which device a magnetic footprint describing the magnetic field acting on the object in its different locations is formed, which magnetic footprint is recorded in connection with a teaching run, or with self-learning, for later use. The location of the object after a teaching run is determined by measuring in essentially real-time in the direction of the three coordinates X, Y, Z of the magnetic field acting on the object moving along a controlled trajectory and by comparing the measurement results to a magnetic footprint recorded in advance and also by deducing as a result of the comparison the exact location of the object on its path of travel.
First Claim
Other Claims data not available
Family
International Classification(s)
- G06M:COUNTING MECHANISMS; COUNTING OF OBJECTS NOT OTHER....
- G06F:ELECTRIC DIGITAL DATA PROCESSING
- G01P:MEASURING LINEAR OR ANGULAR SPEED, ACCELERATION, D....
- G01B:MEASURING LENGTH, THICKNESS OR SIMILAR LINEAR DIME....
- G01D:MEASURING NOT SPECIALLY ADAPTED FOR A SPECIFIC VAR....
- B66B:ELEVATORS; ESCALATORS OR MOVING WALKWAYS
- 2014 Application Filing Year
- G06M Class
- 35 Applications Filed
- 32 Patents Issued To-Date
- 91.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G06M Class
- 31.82 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 1, 2029 |
