Fan blade lubrication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
Dec 18, 2013
filing date -
Mar 15, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

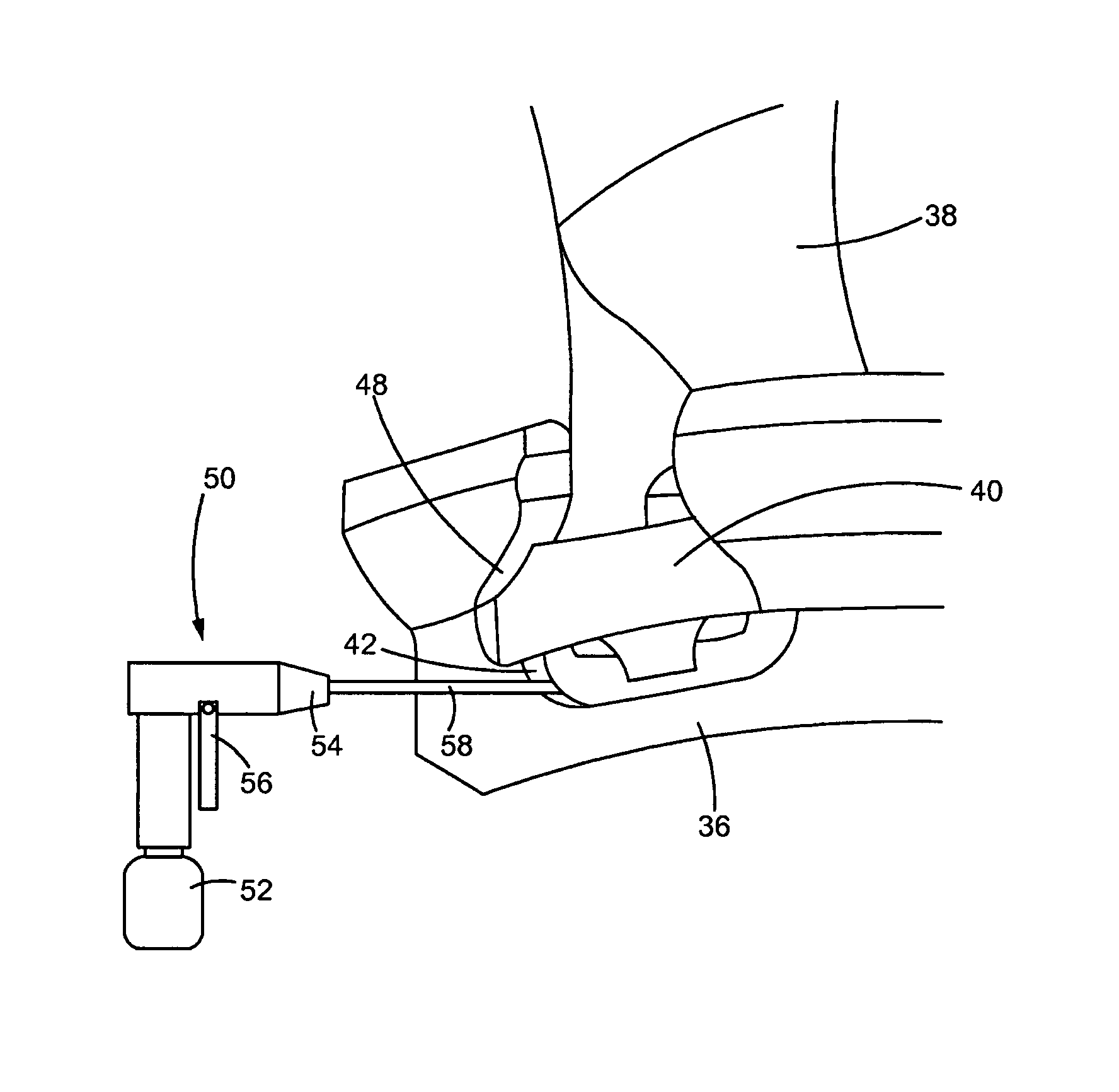

In accordance with one aspect of the disclosure, a lubricant application device for providing lubricant to an airfoil of a gas turbine engine is disclosed. The device may include a container for holding a lubricant, a fluid outlet in fluid communication with the container, a discharge mechanism controlling a flow of the lubricant from the container to the fluid outlet, and an extension tube in fluid communication with the fluid outlet. When the discharge mechanism is activated the lubricant may flow out of the container and through the extension tube. The extension tube may be dimensioned to fit between an airfoil root and rotor cavity of a gas turbine engine.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F16N Class
- 91 Applications Filed
- 83 Patents Issued To-Date
- 91.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16N Class
- 56.82 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 1, 2029 |
