Faucet assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
Jan 25, 2017
filing date -
Jan 26, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

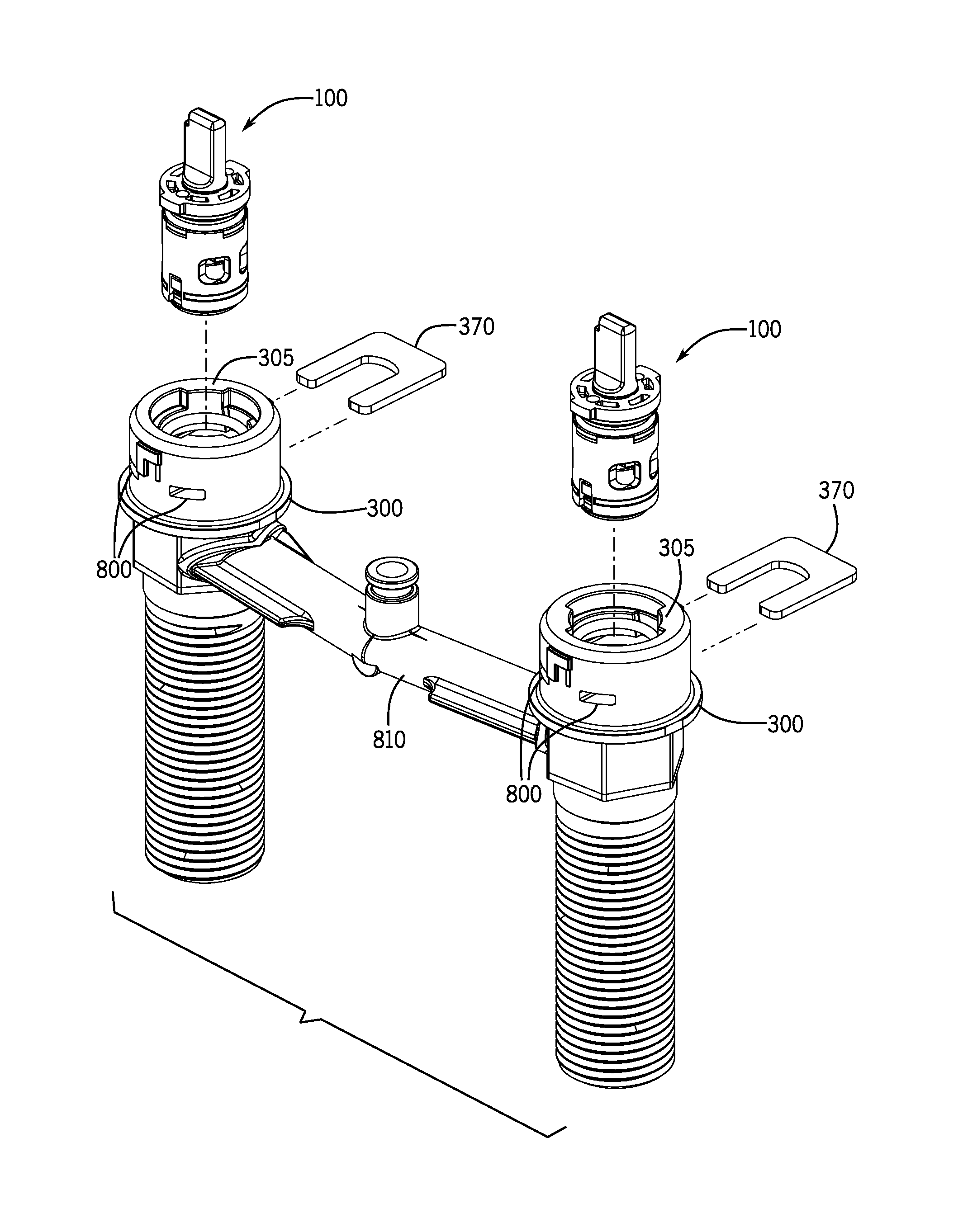

A faucet assembly includes a non-metallic valve body, a valve, a handle adapter, and a retaining clip. The non-metallic valve body includes a longitudinal opening disposed therein and a slot disposed within a side portion thereof. The valve is at least partially disposed within the longitudinal opening. The valve includes a body and a stem extending upwardly from the body, and the stem is configured to rotate relative to the body. The handle adapter is removably coupled to the stem and is rotatably coupled to the non-metallic valve body. The retaining clip is removably inserted into the slot of the non-metallic valve body to limit longitudinal movement of the valve within the non-metallic valve body.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F16K Class
- 35.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 1, 2029 |
