Seat back support assembly for adjustably supporting a seat back of a vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 1, 2018
Issued Date -
N/A
app pub date -
May 4, 2016
filing date -
Mar 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

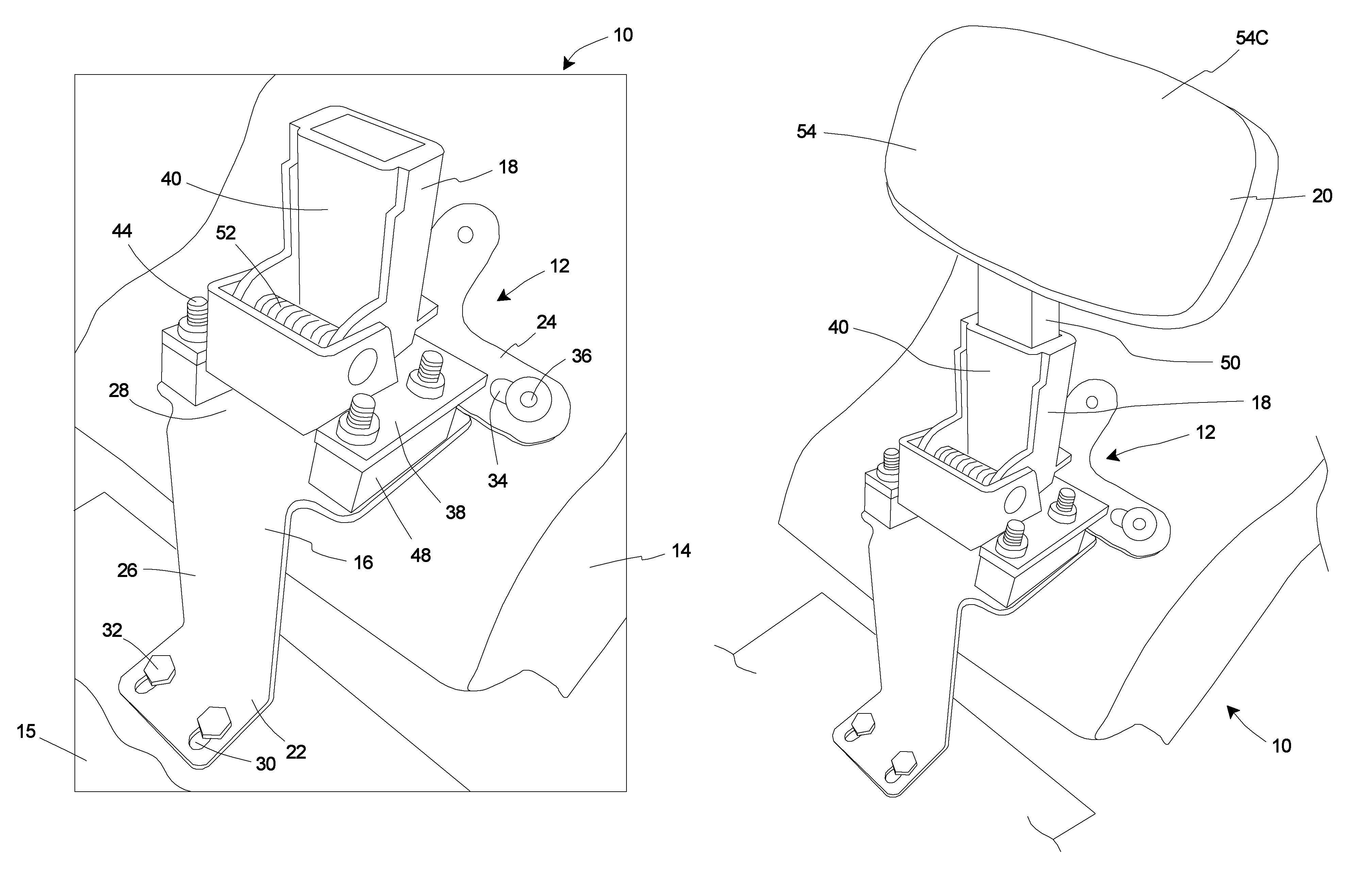

A seat back support assembly comprises a vehicle engaging member and a seat back receiving member. The vehicle engaging member is configured to be secured to a vehicle body. The vehicle engaging member includes a supporting section. The seat back receiving member includes (i) a base that is adjustably coupled to the supporting section, and (ii) a receiver that is coupled to the base, the receiver being configured to receive the seat back. The base is alternately positioned in a first vertical position and a second vertical position relative to the supporting section. When the base is in the first vertical position, the seat back is at a first height relative to the vehicle seat. Alternatively, when the base is in the second vertical position, the seat back is at a second height relative to the vehicle seat that is different than the first height.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A47C Class
- 21.91 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 1, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 1, 2029 |
