Radiation protection curtain
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 24, 2018
Issued Date -
N/A
app pub date -
Apr 17, 2017
filing date -
Apr 18, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

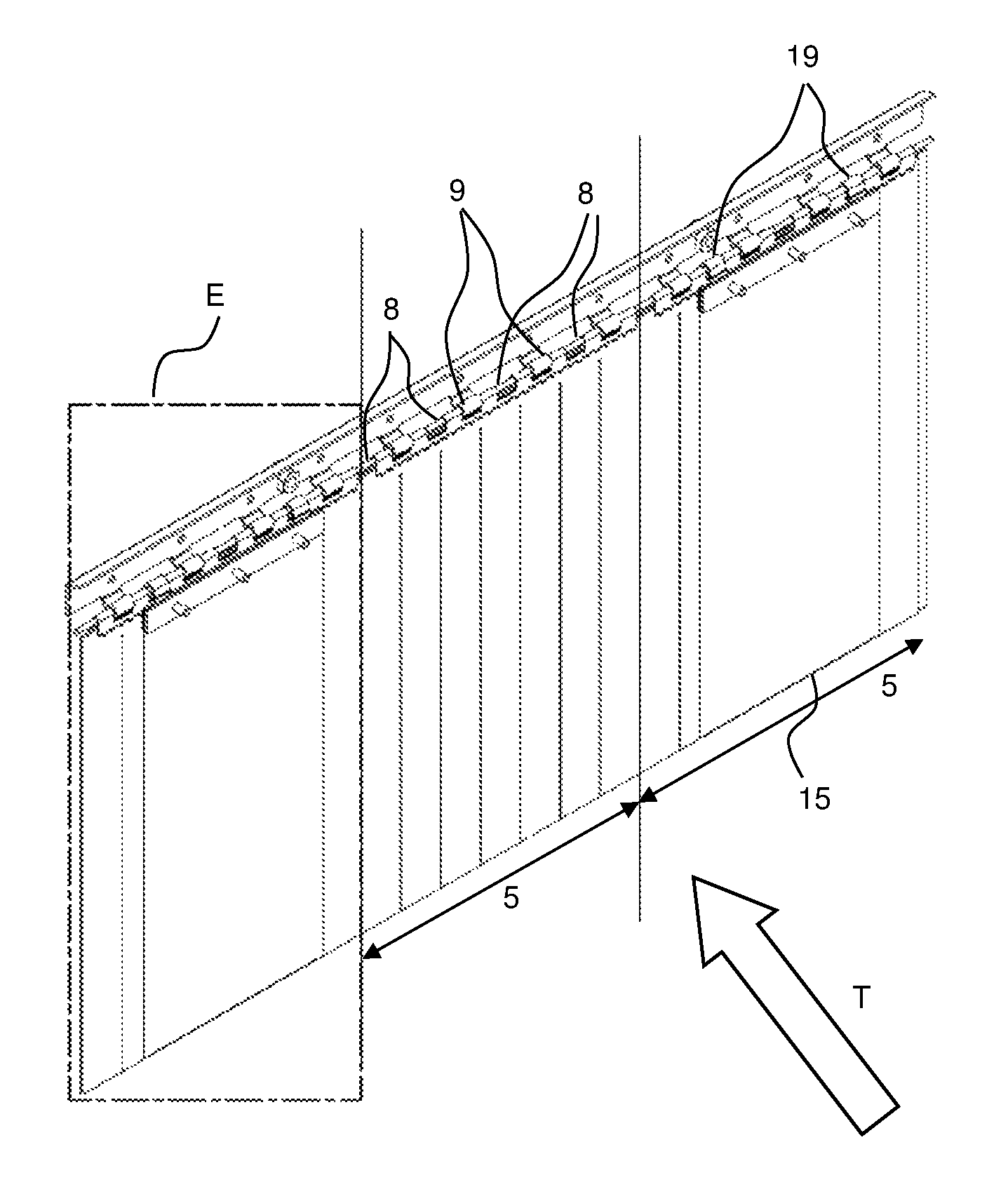

The invention concerns a radiation protection curtain including at least two layers arranged parallel to each other, for use with a means of transporting objects to be scanned on a production line in a direction through the radiation protection curtain. At least one first layer is configured as a radiation protection layer. This at least one first radiation protection layer is preceded in the transport direction outwards by at least one additional separate stand-alone layer. This at least one additional layer is configured as a mechanical protection layer for the purpose of protecting the radiation protection layer behind it from mechanical effects, and the at least one additional mechanical protection layer includes at least one segment that is located on an already-installed radiation protection layer at predefined positions in such a way that it can be replaced individually.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G21F Class
- 172 Applications Filed
- 121 Patents Issued To-Date
- 70.35 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G21F Class
- 36.36 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 24, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 24, 2029 |
