Battery pack
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 17, 2018
Issued Date -
N/A
app pub date -
Jul 25, 2012
filing date -
Jul 28, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

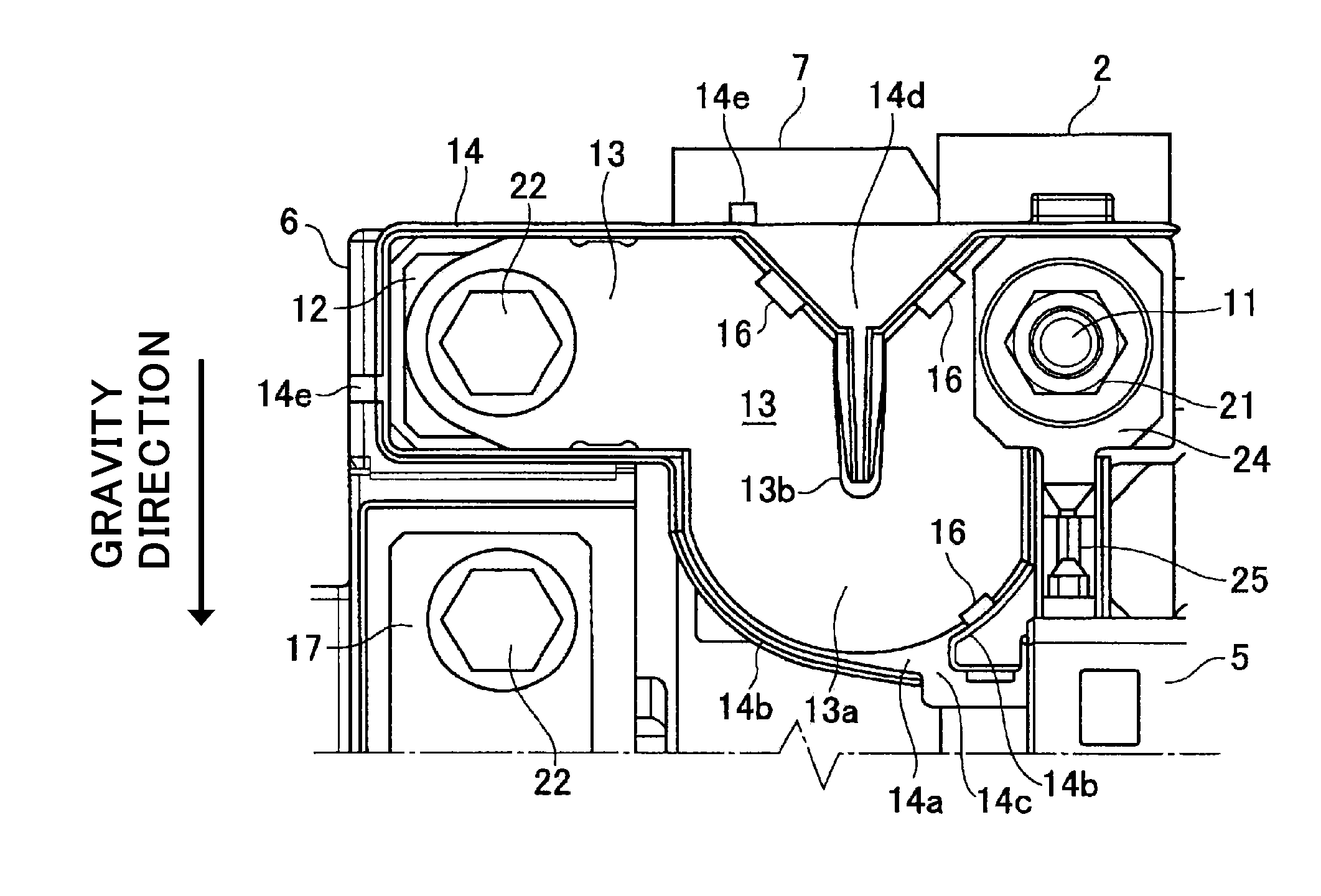

A battery pack includes a battery assembly having a plurality of battery cells, a busbar module that includes a plurality of conductors and an insulating member which holds the conductors, a battery control unit provided at an end portion of the battery assembly in an arrangement direction of the battery cells, and an extraction conductor that connects a total electrode terminal connected to the battery assembly to a main circuit terminal of the battery control unit. The extraction conductor has a water escape portion which is located below an imaginary line connecting the total electrode terminal to the main circuit terminal, and an upper end of the water escape portion is formed at a location that is lower than a lower end of the main circuit terminal.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 17, 2029 |
