Current reference circuit and an electronic device including the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 17, 2018
Issued Date -
N/A
app pub date -
Aug 15, 2016
filing date -
Aug 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

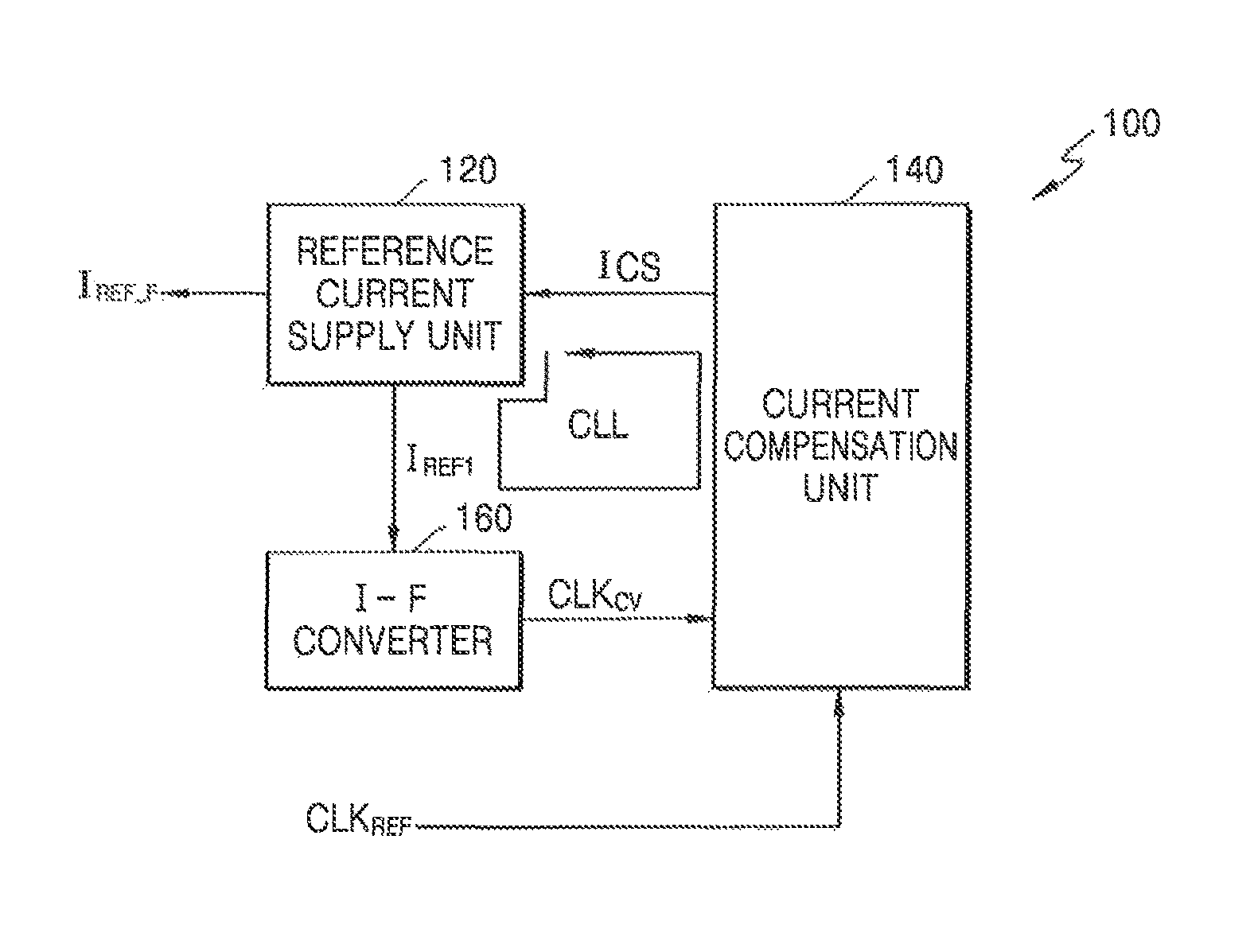

A current reference circuit includes a reference current supply unit configured to generate a reference current having a target current level, a current-frequency converter configured to receive a first temporary reference current corresponding to the reference current from the reference current supply unit and to generate a first comparison clock signal in response to the first temporary reference current, and a first current compensation unit configured to generate a first current compensation signal used for the first temporary reference current to reach the target current level in response to a frequency of a reference clock signal and a frequency of the first comparison clock signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H03L Class
- 676 Applications Filed
- 589 Patents Issued To-Date
- 87.14 % Issued To-Date
