Clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 17, 2018
Issued Date -
N/A
app pub date -
Oct 13, 2016
filing date -
Sep 10, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

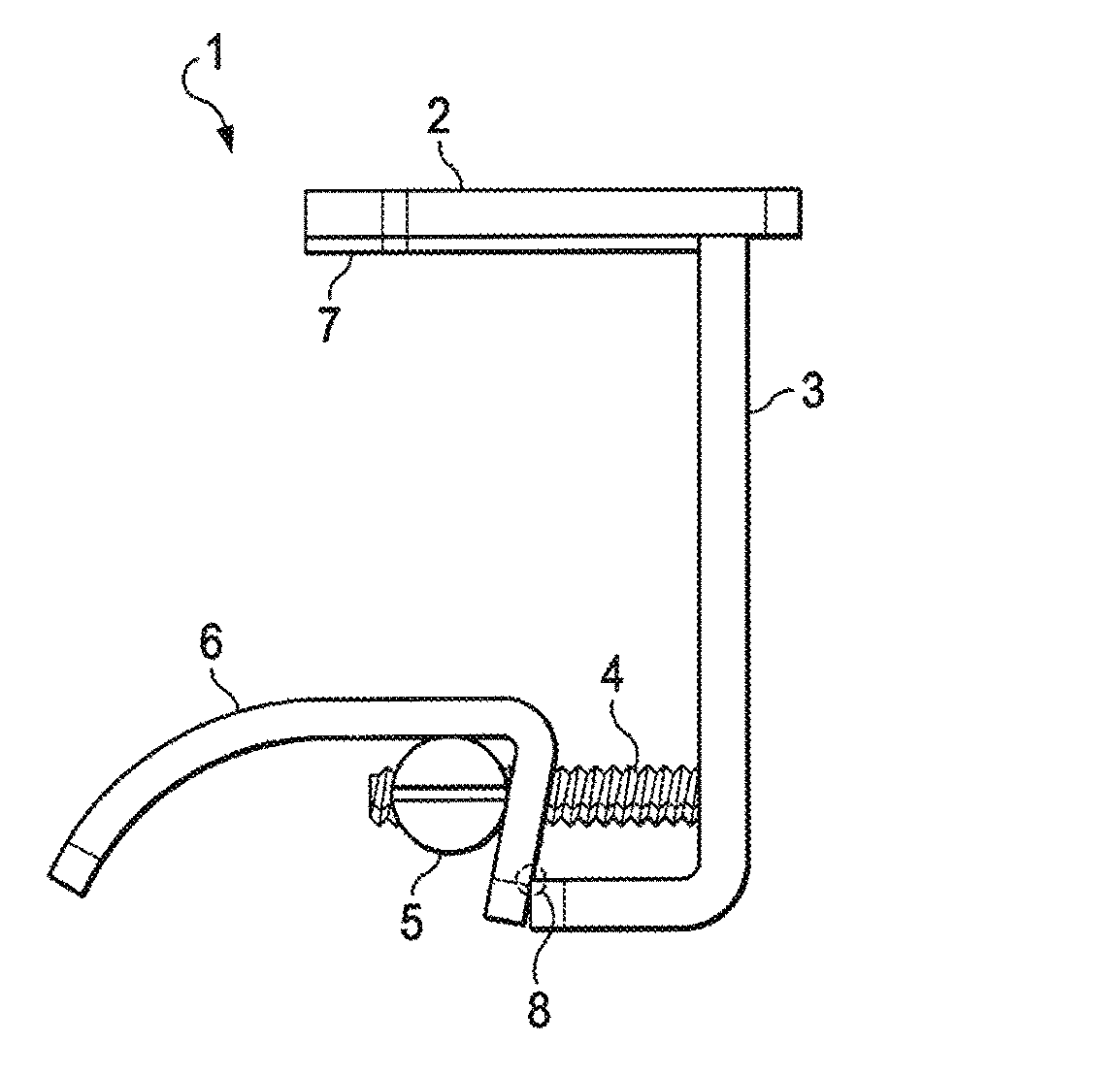

The invention disclosed herein generally relates to an improved clamp assembly for attaching two or more objects, such as furniture, tables, desks, dividers or other panel elements together of variable thicknesses. The elements of the clamp assembly invention generally include a clamp body with a clamp stop and clamp spine, a cross-dowel, an actuating screw and clamp lever. The clamp assembly imparts a compressive clamping force by utilizing a fulcrum-lever arrangement whereby the clamp lever is moved in an arcuate trajectory by rotating the actuating screw in the desired direction as the clamp lever pivots about a fulcrum point. This allows the user to easily place and connect various objects, such as tables, desks, courtesy and privacy panels and another desired object that the user desires to secure in a desired arrangement by imparting a compressive force to the panel element that is to be connected to another panel element.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B25B Class
- 791 Applications Filed
- 523 Patents Issued To-Date
- 66.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B25B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 17, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 17, 2029 |
