Coupling head of a central buffer coupling
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 10, 2018
Grant Date -
Aug 4, 2016
app pub date -
Sep 11, 2014
filing date -
Sep 11, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

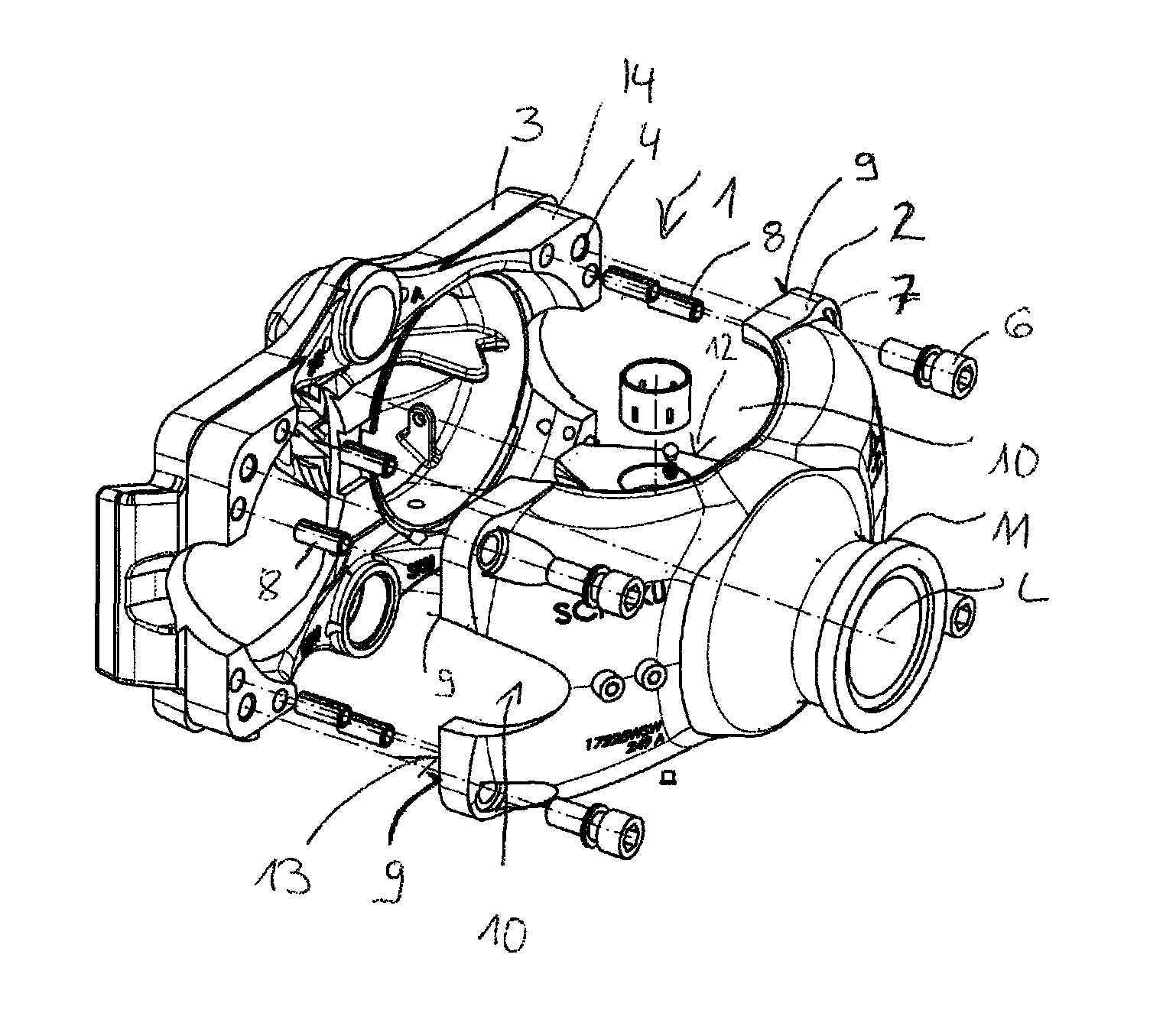

A coupling head for a central buffer coupling for vehicles that are able to be coupled has a coupling head housing and an end plate that terminates the coupling head housing on the end face and is releasably connected to the coupling head housing. The coupling head housing has a first connection region for coupling to the end plate and a second connection region for establishing the connection to a coupling rod. The coupling head housing is designed in one piece as a forged component. The first connection region is formed on the coupling head housing by at least two contact surfaces arranged separately from one another in order to be at least indirectly supported on partial surfaces of the end plate and the coupling head housing is connected to the end plate in the first connection region by non-positive connections.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B61G Class
- 37 Applications Filed
- 36 Patents Issued To-Date
- 97.30 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 10, 2029 |
