Removing unit and removing method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 10, 2018
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
Sep 10, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

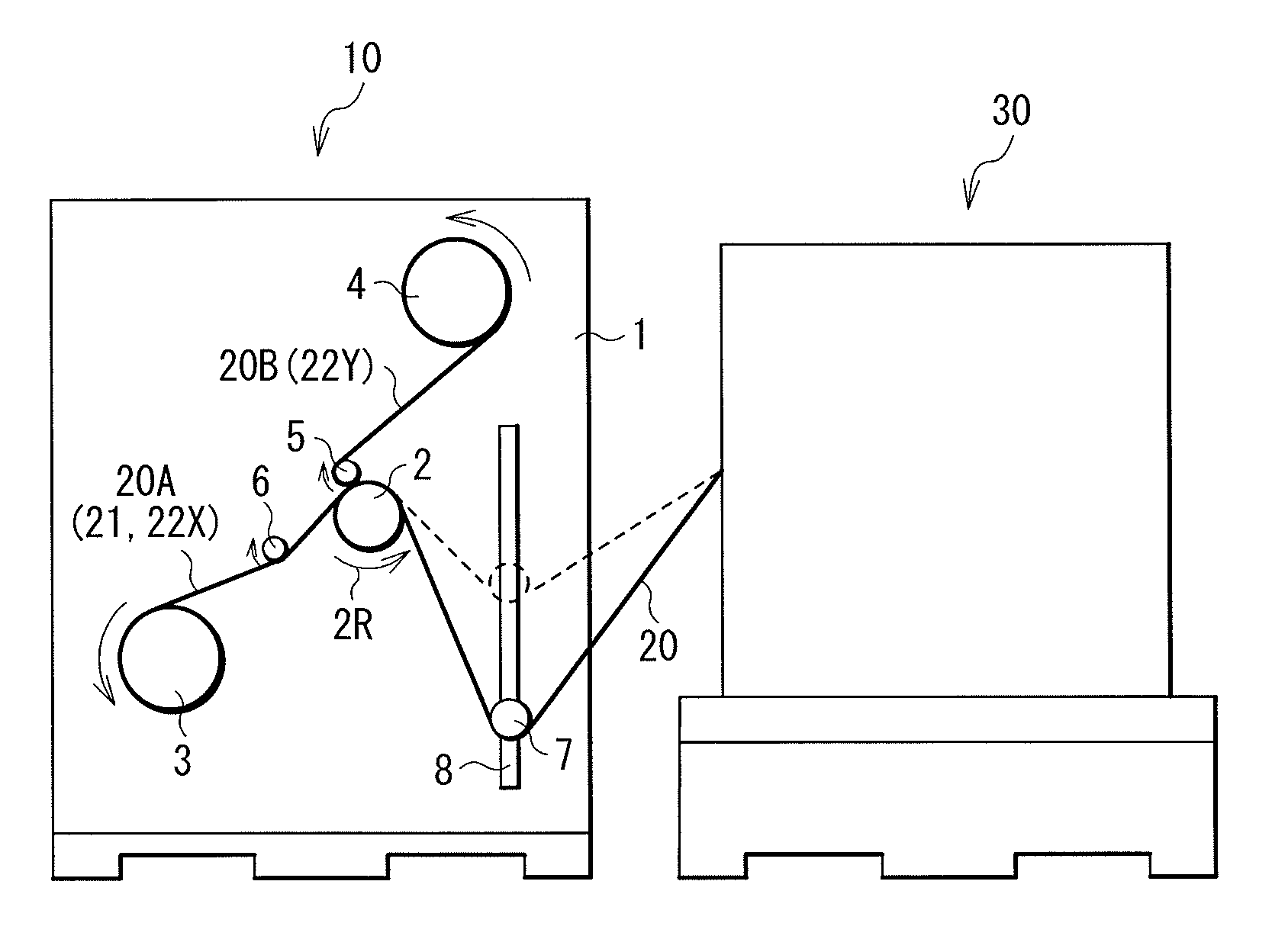

Provided is a removing unit that includes: a first conveying roller, a second conveying roller, a third conveying roller, and a take-up roller. The first conveying roller conveys a stack including first and second base members which are removably stacked with respect to each other. The second conveying roller conveys the second base member from which the first base member has been removed. The third conveying roller conveys the first base member which has been removed from the second base member, along a surface of the first conveying roller. The take-up roller takes up the first base member which has been conveyed by the third conveying roller. The second conveying roller is provided upstream from a first tangent in a conveying direction of the first base member. The third conveying roller is provided to overlap the first tangent or provided downstream from the first tangent, in the conveying direction.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B26D Class
- 453 Applications Filed
- 316 Patents Issued To-Date
- 69.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B26D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 10, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 10, 2029 |
