Apparatus for physically unclonable function (PUF) for a memory array
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2018
Issued Date -
N/A
app pub date -
Jul 13, 2015
filing date -
Jul 13, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

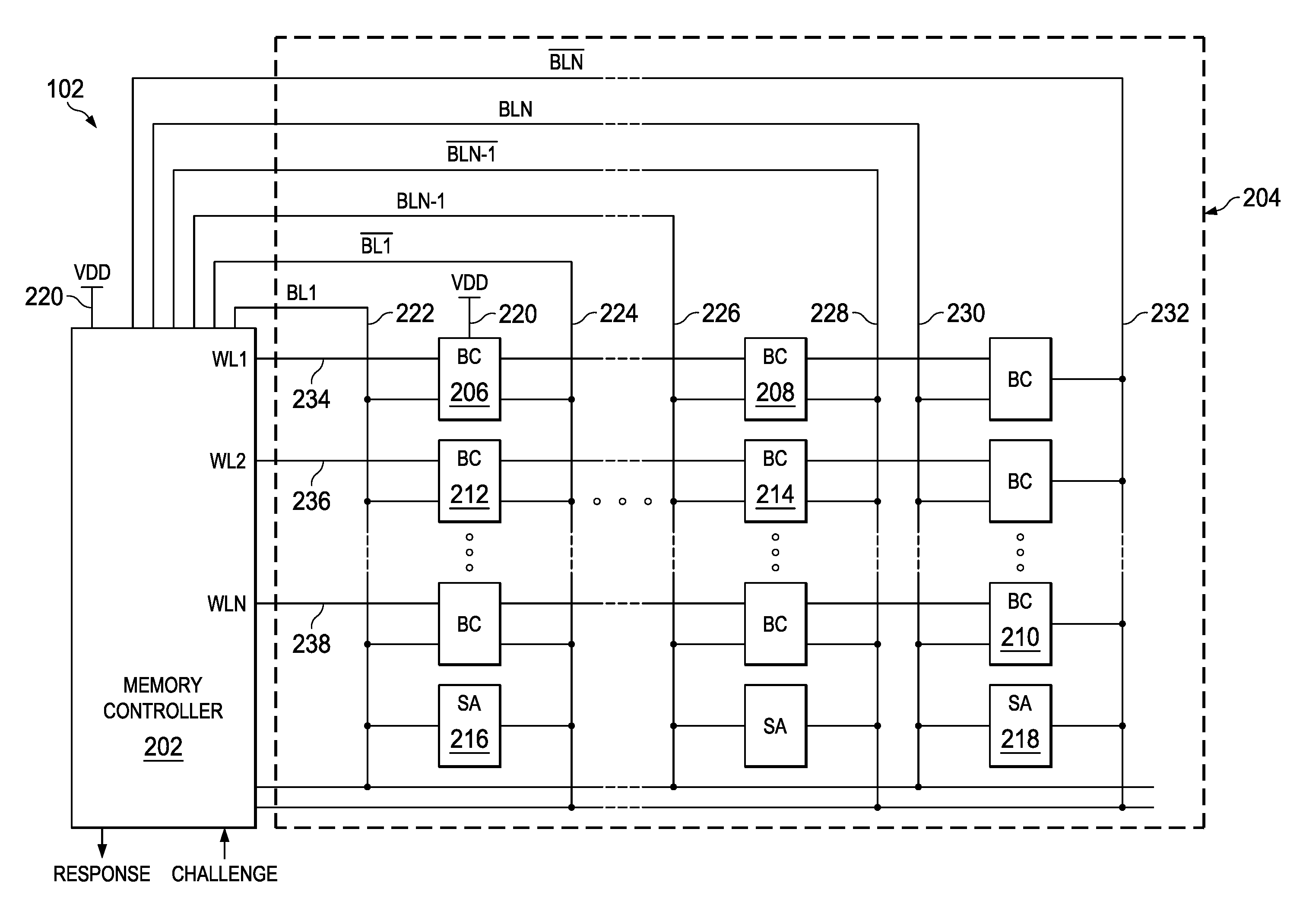

Methods and apparatus for creating a physically unclonable function for SRAM are disclosed. An example method includes after applying a voltage to a memory array: determining a first duration between the applying of the voltage and a first output of a first bit cell, the first output corresponding to a first value stored in the first bit cell, and determining a second duration between the applying of the voltage and a second output of a second bit cell, the second output corresponding to a second value stored in the second bit cell. The example method further includes determining a function based on a comparison of the first duration and the second duration, the function to establish an identification of a circuit that includes the memory array.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 9 Citation Count
- H04L Class
- 17.38 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 3, 2029 |
