Vehicle drivable in use by a person walking or running whilst seated and the use of such vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2018
Grant Date -
May 19, 2016
app pub date -
May 30, 2014
filing date -
Jul 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

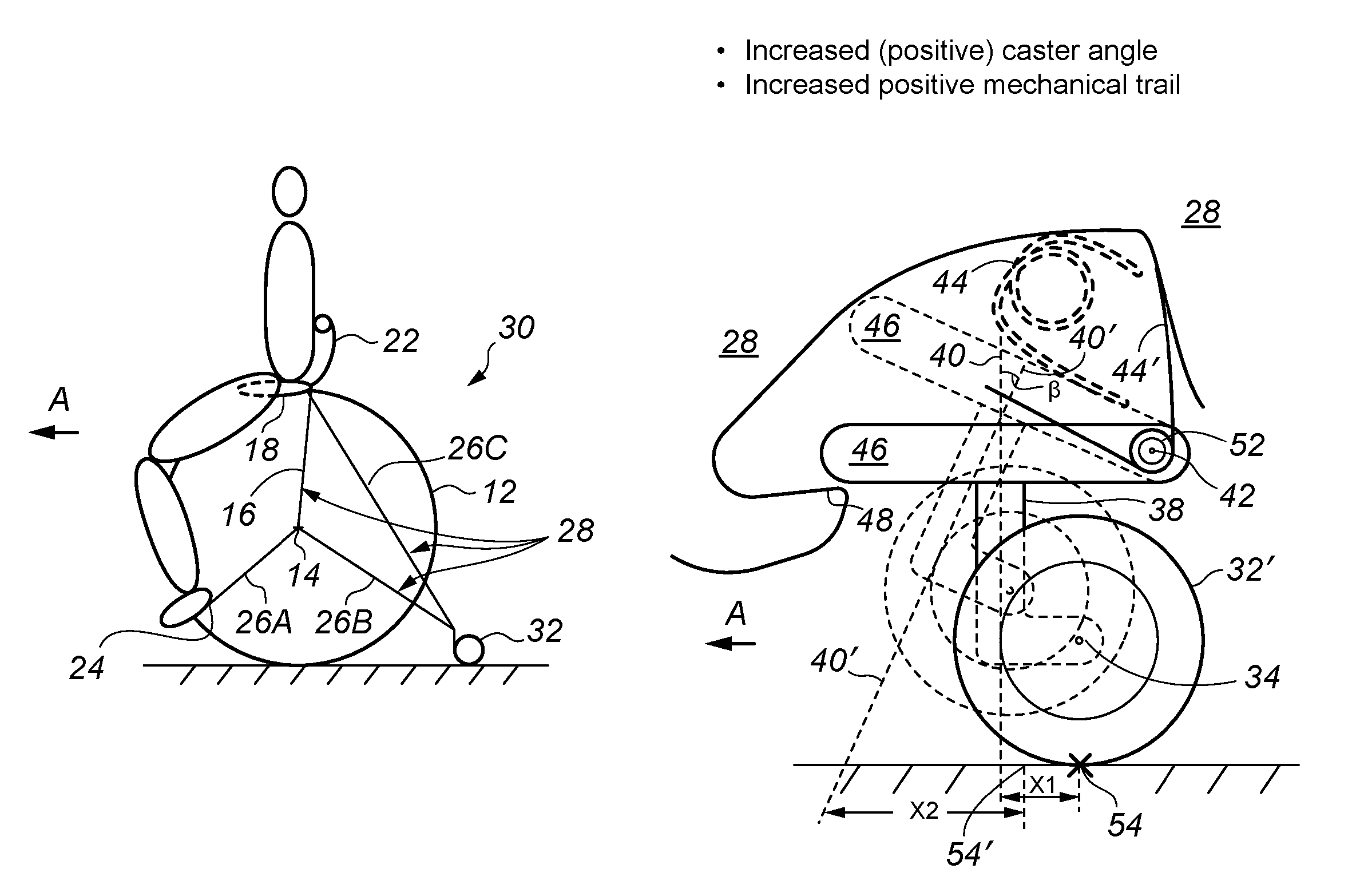

The invention provides a vehicle drivable in use by a person walking or running while seated comprising: a frame; a large diameter front wheel non-steerable with respect to the frame, a seat for supporting a user's weight while walking or running, the frame configured to carry the seat suspended on the front wheel, a small diameter, steerable rear wheel journalled to the frame at a steering pivot axis, the seat being rotatable forwardly with respect to the front wheel and comprising a seat base for supporting a user and further comprising a backrest for engaging the user's back in use. The large front wheel may be of approximate diameter of a user's leg (typically an adult human), thus the large front wheel may be of similar size to a bicycle wheel for the user.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2014 Application Filing Year
- B62M Class
- 329 Applications Filed
- 279 Patents Issued To-Date
- 84.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B62M Class
- 30.49 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 3, 2029 |
