Hand brake limiting device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2018
Issued Date -
N/A
app pub date -
Aug 8, 2016
filing date -
May 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

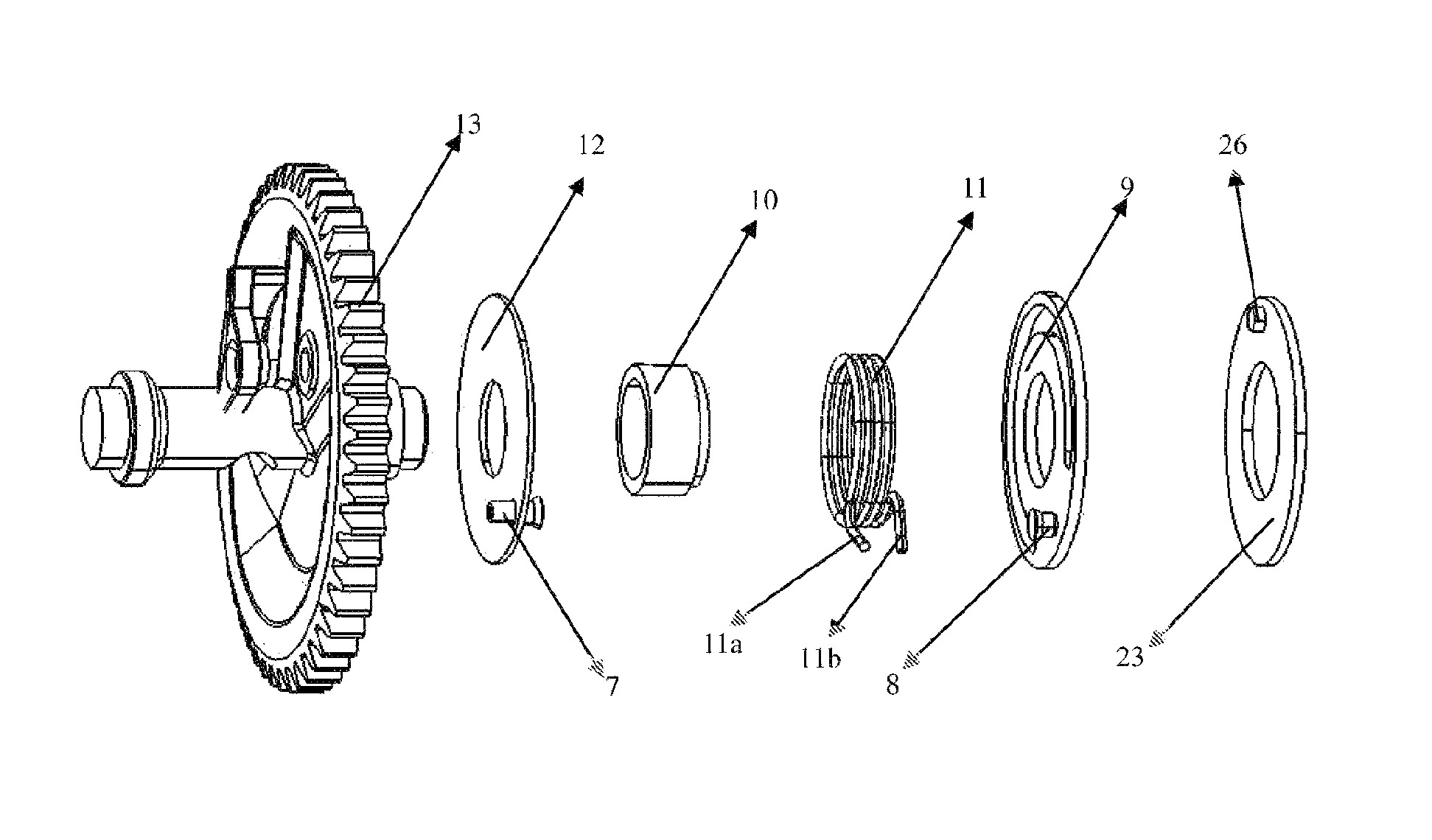

Provided is a hand brake limiting device, comprising a bearing I (10), a spring, a spring holder (12), a guide plate (9), and a guide plate holder (23); the bearing I (10) is disposed on the spring holder (12); the spring is sleeved on the outside of the bearing I (10); the guide plate (9) and the guide plate holder (23) are sequentially disposed at one side of the spring away from the spring holder (12); a stopper post III (7) is secured to one side of the spring holder (12) facing the spring; a stopper post In (8) is secured to one side of the guide plate (9) facing the spring; a stopper post II (26) is secured to one side of the guide plate holder (23) facing the guide plate (9).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B61H Class
- 71 Applications Filed
- 57 Patents Issued To-Date
- 80.29 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 3, 2029 |
