Magnetodynamic apparatus and method for separating non-ferrous conductive blanks
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2018
Issued Date -
N/A
app pub date -
Nov 30, 2016
filing date -
Dec 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

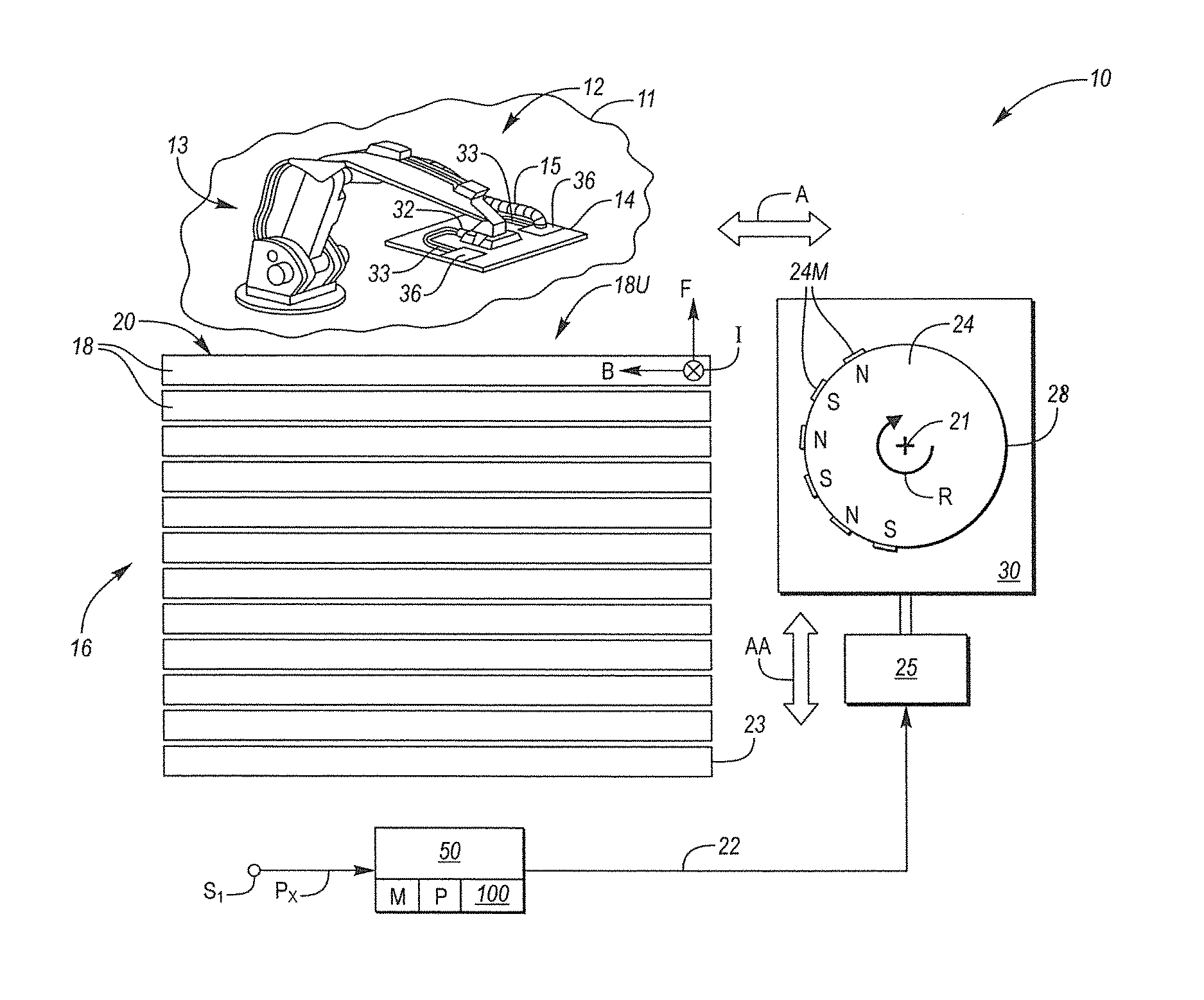

A magnetodynamic apparatus for separating conductive non-ferrous blanks includes at least one magnet positioned adjacent to a stack of the blanks and configured to generate a magnetic field in a first direction with respect to a major surface of an uppermost blank within the stack. The apparatus includes an actuator device for positioning the magnet with respect to the stack during production of an electric current in a second direction along the major surface. The second direction is normal to the first direction such that a magnetic separation force is generated in a third direction normal to the first and second directions. The separation force is sufficient for magnetically separating the uppermost blank from remaining blanks in the stack. The magnets may be rotated on a rotor or held stationary. The electric current may be induced or directly injected into the uppermost blank.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H02K Class
- 3008 Applications Filed
- 2169 Patents Issued To-Date
- 72.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 27, 2029 |
