Dual axle skateboard and truck with outboard secondary wheels and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2018
Issued Date -
N/A
app pub date -
Nov 4, 2016
filing date -
Sep 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

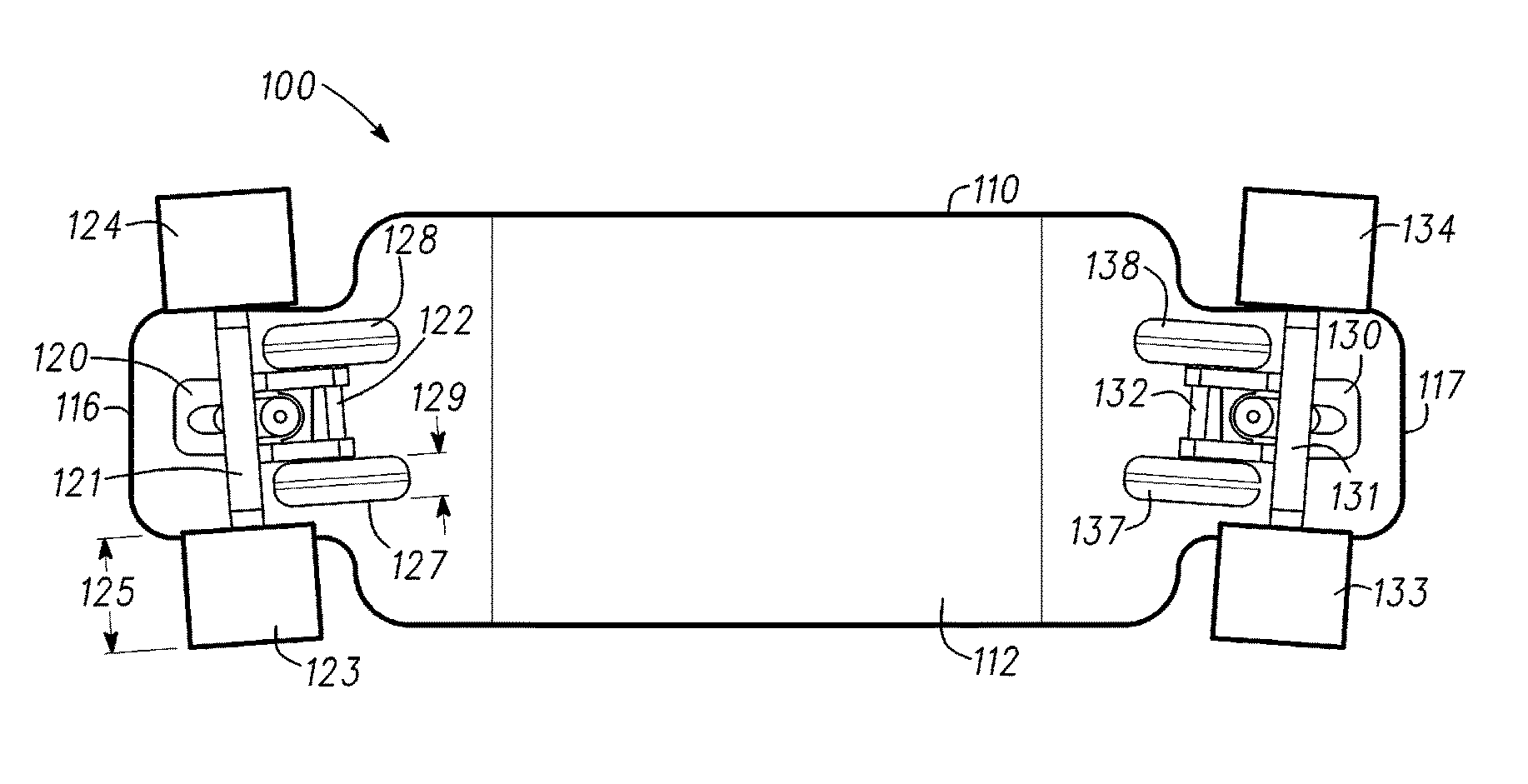

Improved skateboards and methods of obtaining or providing skateboards with improved trucks. Trucks have two axles or axes, two primary wheels, and two secondary wheels, and skateboards have eight wheels, four in front and four at the rear portion of the skateboard. The four primary wheels support most or all of the weight of the skateboard when the skateboard is on a flat surface, and the two secondary wheels support the weight of one portion of the skateboard (e.g., front or rear) when the primary wheels cross a crack (e.g., a sidewalk contraction joint). In various embodiments, the secondary wheels are located outboard of the primary wheels. Further, in a number of embodiments, the axis of rotation or axle of the primary wheels remains parallel to that of the secondary wheels, whether the skateboard is going straight or turning.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B62M Class
- 442 Applications Filed
- 345 Patents Issued To-Date
- 78.06 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B62M Class
- 30.49 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 27, 2029 |
