Hub apparatus of heterogeneous network and method of offloading the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jul 26, 2013
filing date -
Dec 21, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

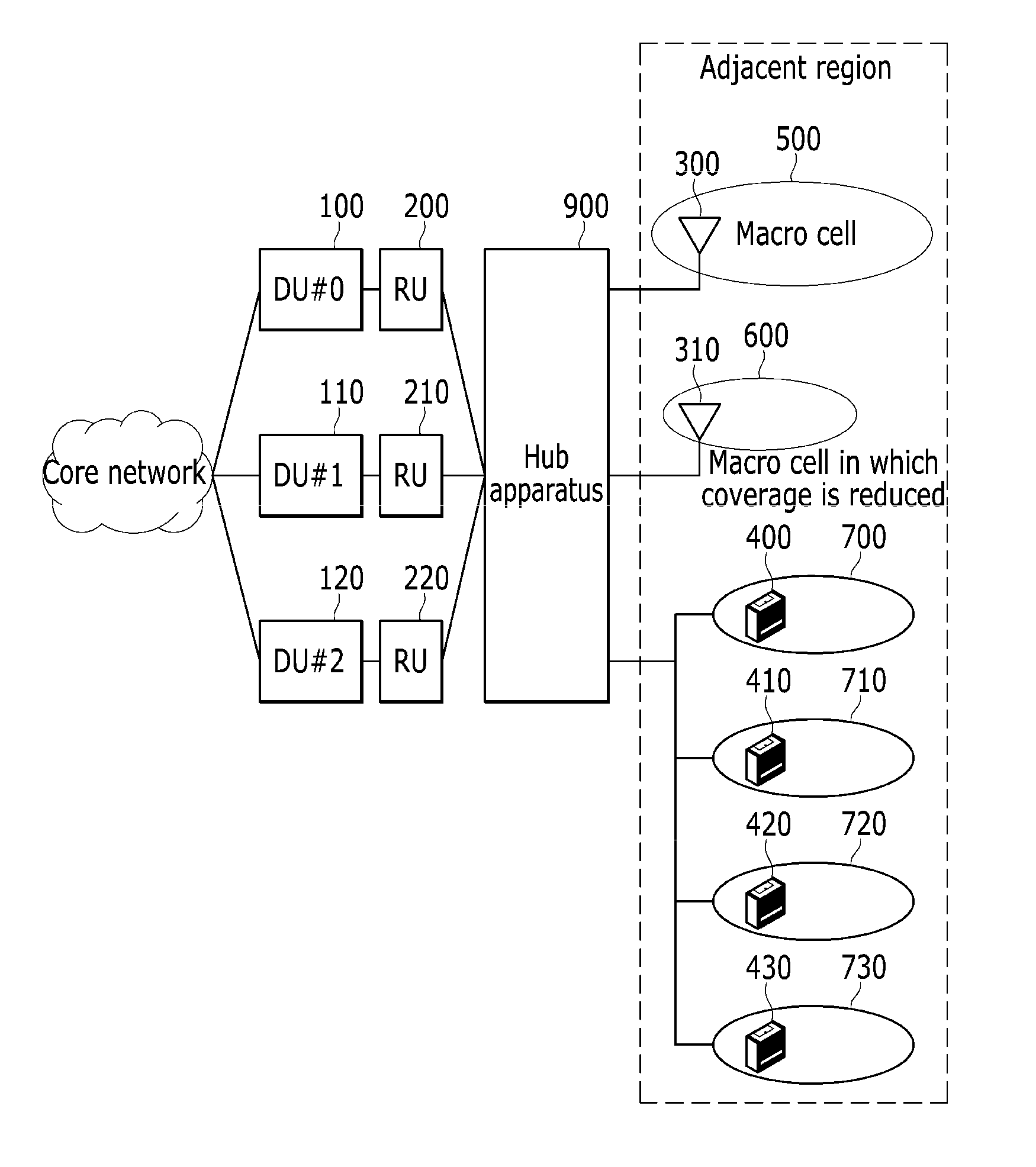

A hub apparatus may be provided for distributing a load of a small cell digital unit to a macro cell digital unit in a heterogeneous network. The hub apparatus includes an offloading controller configured to determine a first small cell, as an offloading target among a plurality of small cells based on a load of the macro cell digital unit and the small cell digital unit, to determine a first digital unit processing a load of the first small cell among at least one macro cell digital unit, to that generate a first control signal that requests connection to the first digital unit and a low-power radio unit of the first small cell, a path change unit connected to each of an antenna, having one side installed in the macro cell and a low-power radio unit installed in each small cell, having the other side connected to each of the macro cell digital unit and the small cell digital unit, configured to form a path connecting the one side and the other side, and configured to change a digital unit connected to a corresponding low-power radio unit based on the first control signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04W Class
- 14675 Applications Filed
- 12938 Patents Issued To-Date
- 88.17 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
