Fault-tolerant control method for position sensor of switched reluctance motor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Aug 20, 2015
filing date -
Dec 8, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

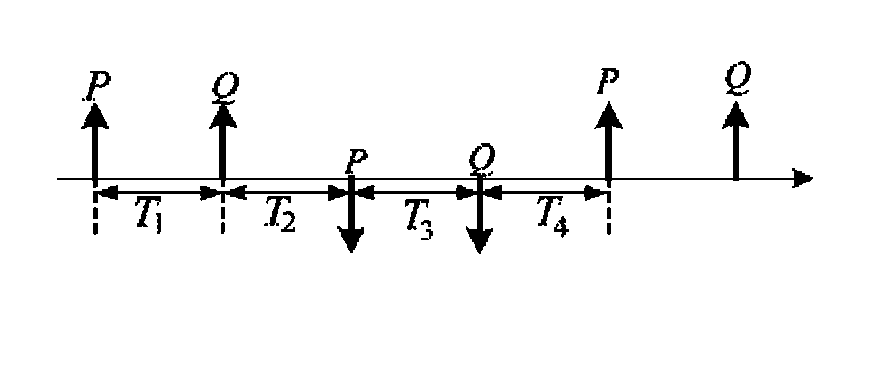

A fault-tolerant control method for a position sensor of a switched reluctance motor, if the position sensor of the switched reluctance motor runs without a fault, detecting, in real time, four equal-interval or equal-angle continuous edge pulses of an output signal of the position sensor, the fourth edge pulse being the current edge pulse, and detecting time intervals (T1, T2, T3) between each two adjacent edge pulses sequentially, thereby calculating a time interval (T4) between the current edge pulse and a next edge pulse following the current edge pulse. If the position sensor of the switched reluctance motor fails, and the next edge pulse following the current edge pulse is lost, reconstructing the next edge pulse after the interval time (T4) of the current edge pulse of the output signal of the position sensor. The method can be used, when one or more position sensors of a rotatory and linear switched reluctance motor having various phases and various topology structures fail, to reconstruct an edge pulse after lost.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02P Class
- 1367 Applications Filed
- 1133 Patents Issued To-Date
- 82.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02P Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
