Semiconductor device with vertically integrated pHEMTs
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Aug 17, 2016
filing date -
Jul 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

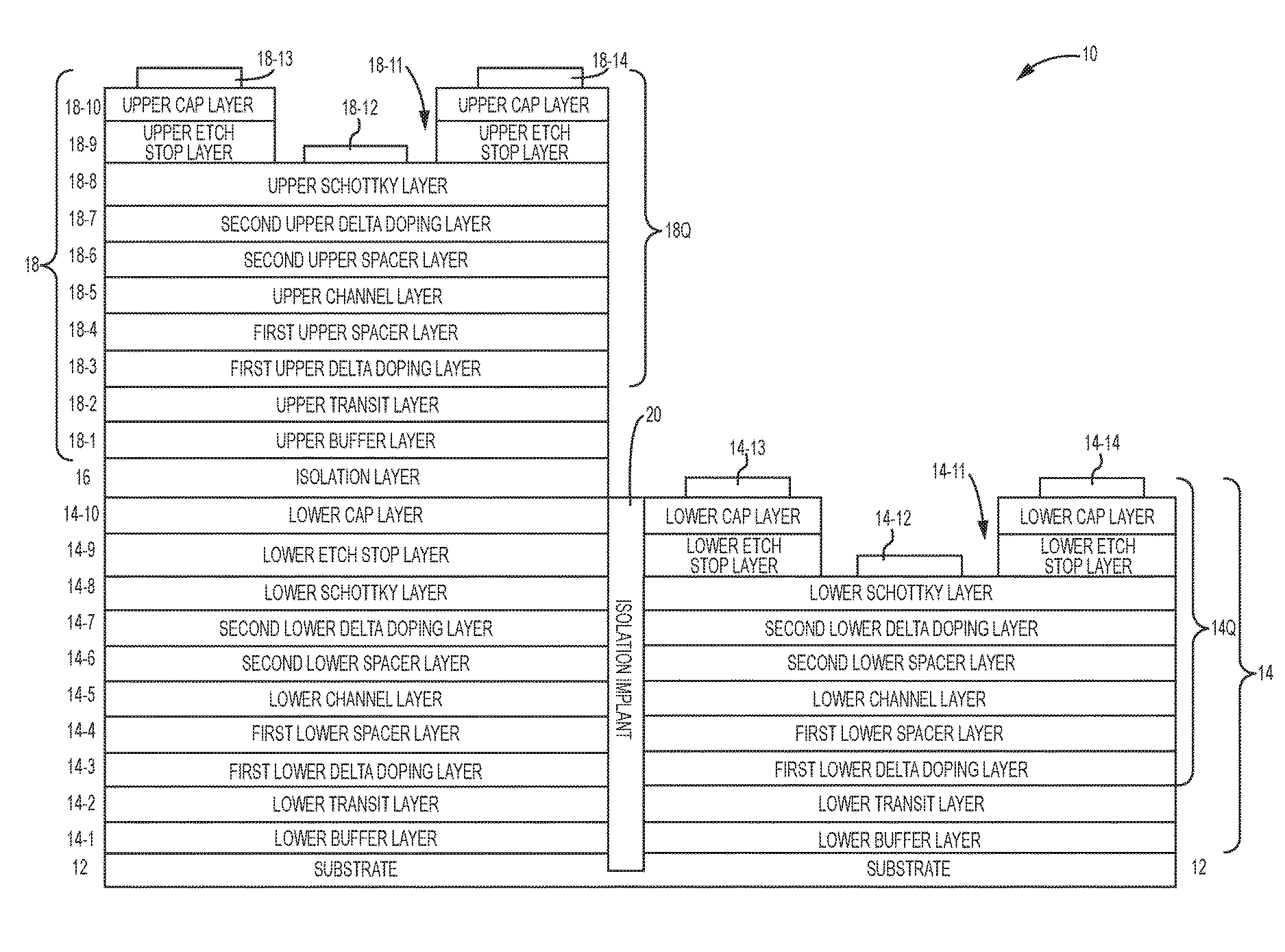

The present disclosure relates to a semiconductor device with vertically integrated pseudomorphic high electron mobility transistors (pHEMTs). The disclosed semiconductor device includes a substrate, a lower pHEMT structure with a lower pHEMT, an isolation layer, and an upper pHEMT structure with an upper pHEMT. The lower pHEMT structure is formed over the substrate and has a first region and a second region that is laterally disposed with the first region. The lower pHEMT is formed in or on the second region. The isolation layer resides over the first region. The upper pHEMT structure is formed over the isolation layer and does not extend over the second region. Herein, the isolation layer separates the lower pHEMT structure from the upper pHEMT structure such that the lower pHEMT and the upper pHEMT operate independently from each other.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H01L Class
- 27971 Applications Filed
- 23507 Patents Issued To-Date
- 84.05 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
