Thin-film transistor and method for fabricating the same, array substrate and method for fabricating the same, and display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 13, 2016
filing date -
Apr 24, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

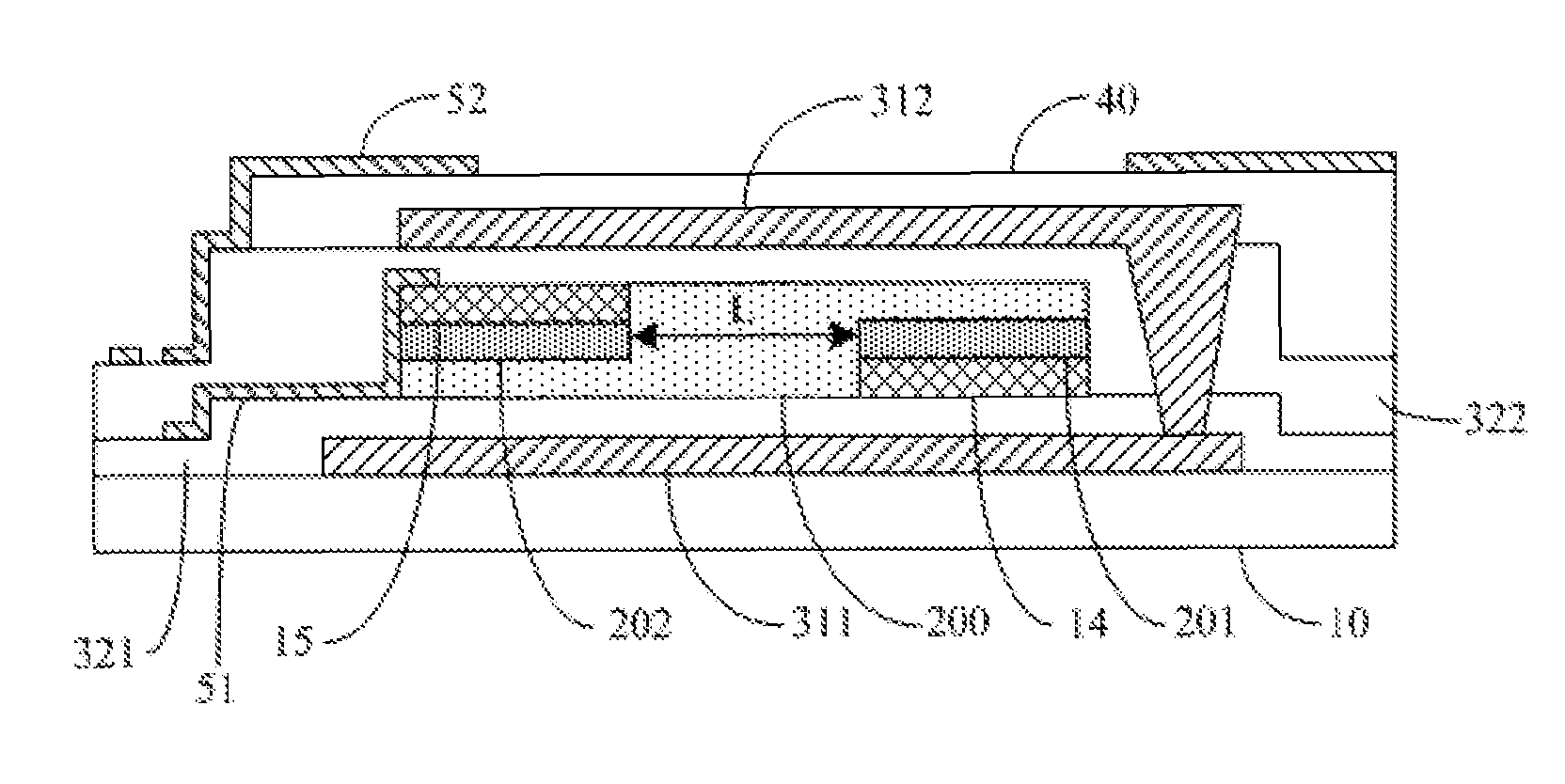

A thin-film transistor (TFT) includes a gate electrode, a gate insulation layer, a source electrode, a drain electrode and an active layer arranged on a base substrate. The active layer includes an un-doped a-Si layer, a first doped a-Si layer and a second doped a-Si layer. One of the source electrode and the drain electrode is in contact with the first doped a-Si layer, and the other of the source electrode and the drain electrode is in contact with the second doped a-Si layer. The source electrode and the drain electrode are on different horizontal planes and spaced apart from each other, and the un-doped a-Si layer is positioned between the source electrode and the drain electrode.
