Thermal processing method and thermal processing apparatus through light irradiation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Oct 26, 2016
filing date -
Nov 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

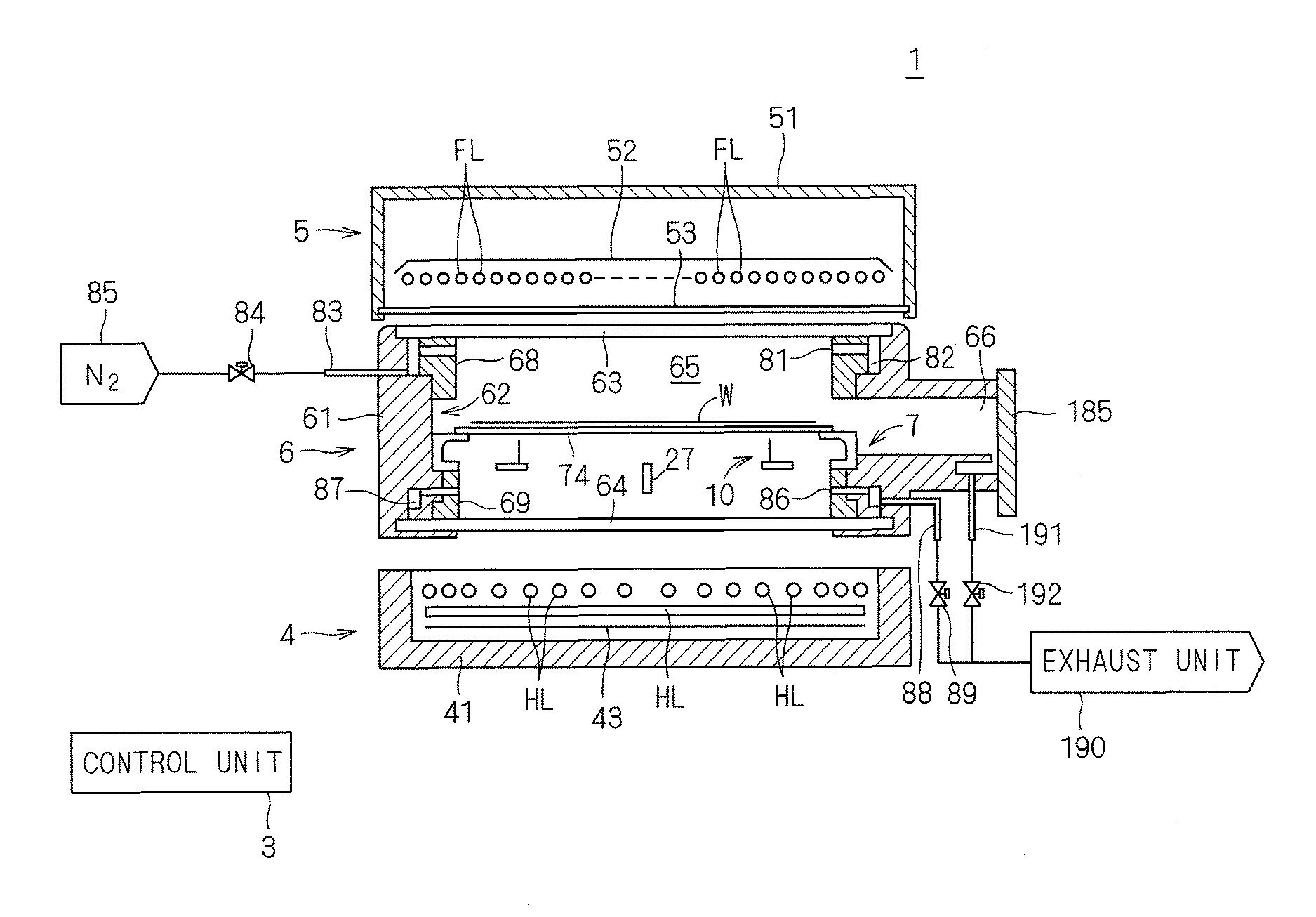

A susceptor is preheated through light irradiation by a halogen lamp before the first semiconductor wafer of a lot as a processing target is transferred into a chamber. The temperature of the susceptor is measured by a radiation thermometer. A control unit is configured to control the output of the halogen lamp so that the temperature of the susceptor reaches a stable temperature based on a result of the measurement of the temperature of the susceptor by the radiation thermometer. The stable temperature of the susceptor is the temperature of the susceptor when the temperature of the susceptor is risen to a constant temperature by continuously performing light irradiation heating on a plurality of semiconductor wafers in the chamber without heating the susceptor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- C23C Class
- 32.86 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
