Programming assist device for programmable logic controller program and programming assist method for the program
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 6, 2015
filing date -
Apr 10, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

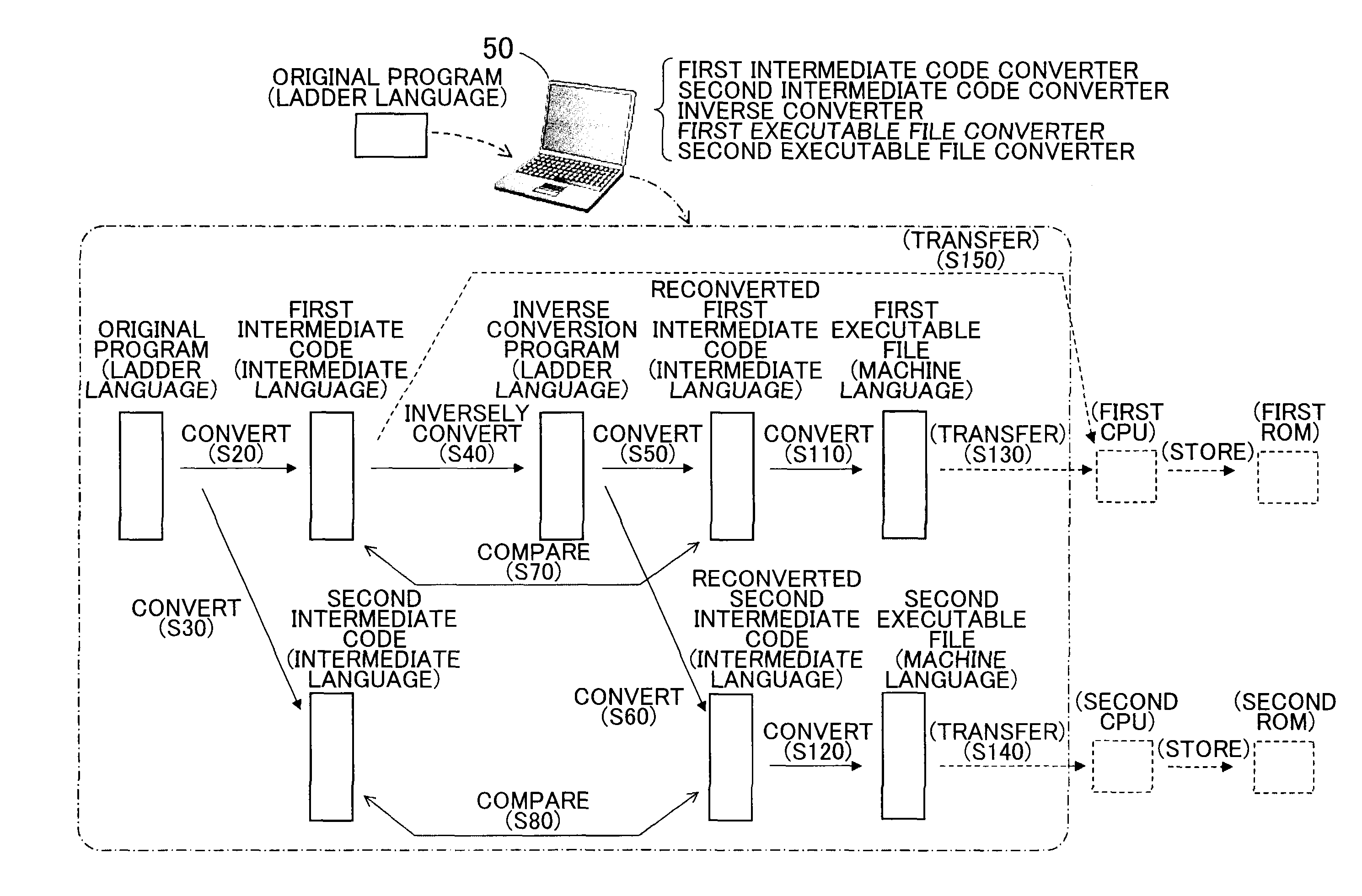

A programming assist device for a PLC program and a programming assist method for a PLC program capable of easily preparing separate executable files for causing redundant CPUs of a PLC to operate and reliably preventing an emergency stop of the PLC due to a failure in converter software are provided. First and second intermediate codes are generated from an original program. An inverse conversion program is generated from the first intermediate code. A reconverted first intermediate code and a reconverted second intermediate code are generated from the inverse conversion program. In the case where the intermediate codes and the reconverted intermediate codes match each other, a first executable file is generated from the reconverted first intermediate code, and a second executable file is generated from the reconverted second intermediate code. The executable files are transferred to the PLC.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G05B Class
- 4068 Applications Filed
- 2793 Patents Issued To-Date
- 68.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G05B Class
- 24.54 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
