Wavefield separation based on a matching operator between sensor responses in multi-component streamers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Dec 16, 2014
filing date -
Dec 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

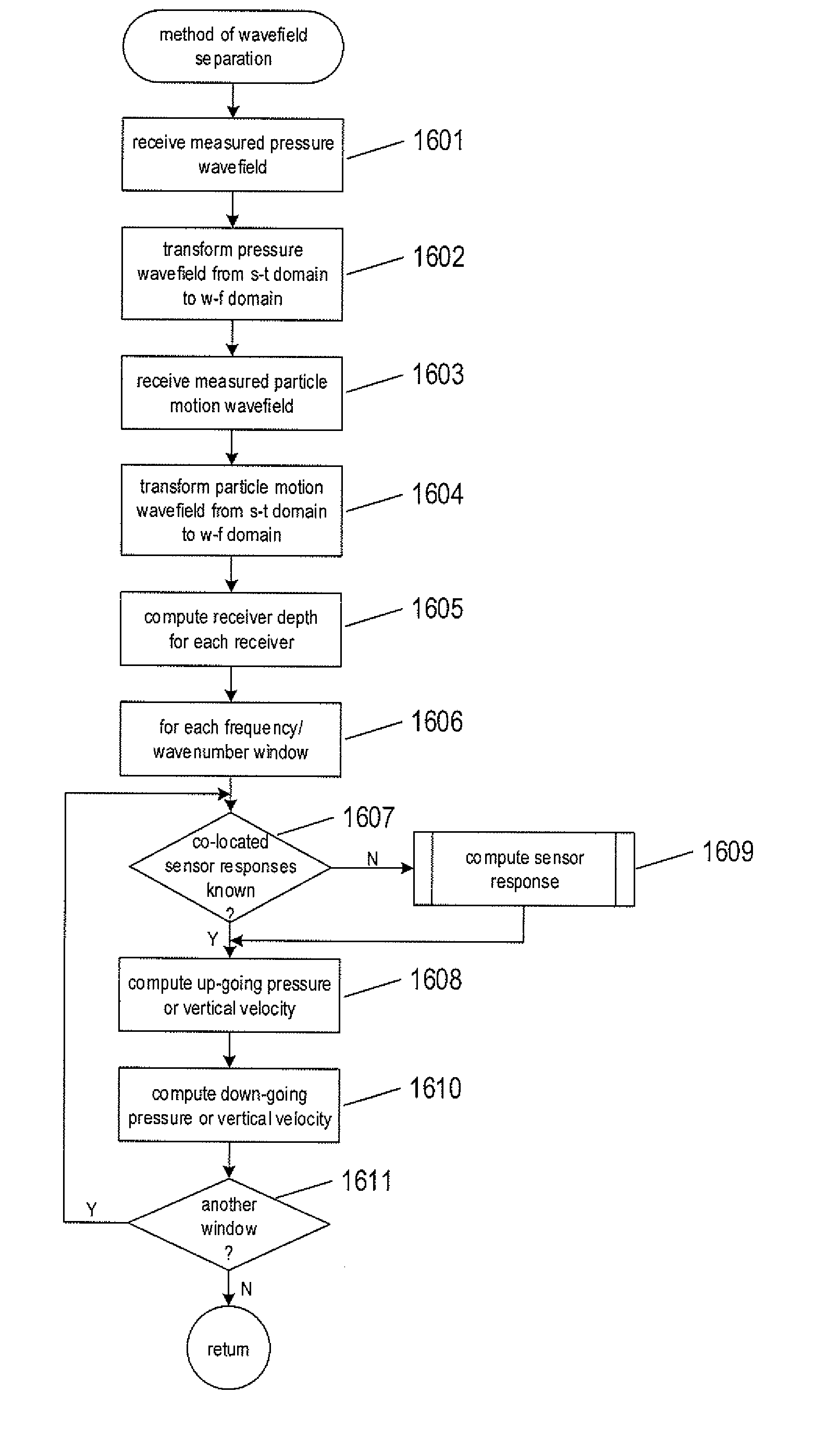

This disclosure is directed to systems and methods of wavefield separation based on matching operators that represents the relationship between co-located pressure and particle motions sensors. A pressure wavefield and a particle motion wavefield emitted from a subterranean formation are measured using co-located pressure and particle motion sensors located along one or more streamers of a seismic data acquisition system. A matching operator that relates pressure sensor and particle motion sensor responses for co-located pressure and particle motion sensors is computed based on depth of the co-located pressure and particle motion sensors and on the measured pressure and particle motion wavefields. The matching operator and the measured pressure and particle motion wavefields may then be used to compute up-going and down-going wavefields.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G01V Class
- 1628 Applications Filed
- 1339 Patents Issued To-Date
- 82.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G01V Class
- 18.28 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
