System and method for testing frequency synthesizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Grant Date -
Dec 31, 2015
app pub date -
Nov 11, 2013
filing date -
Feb 20, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance

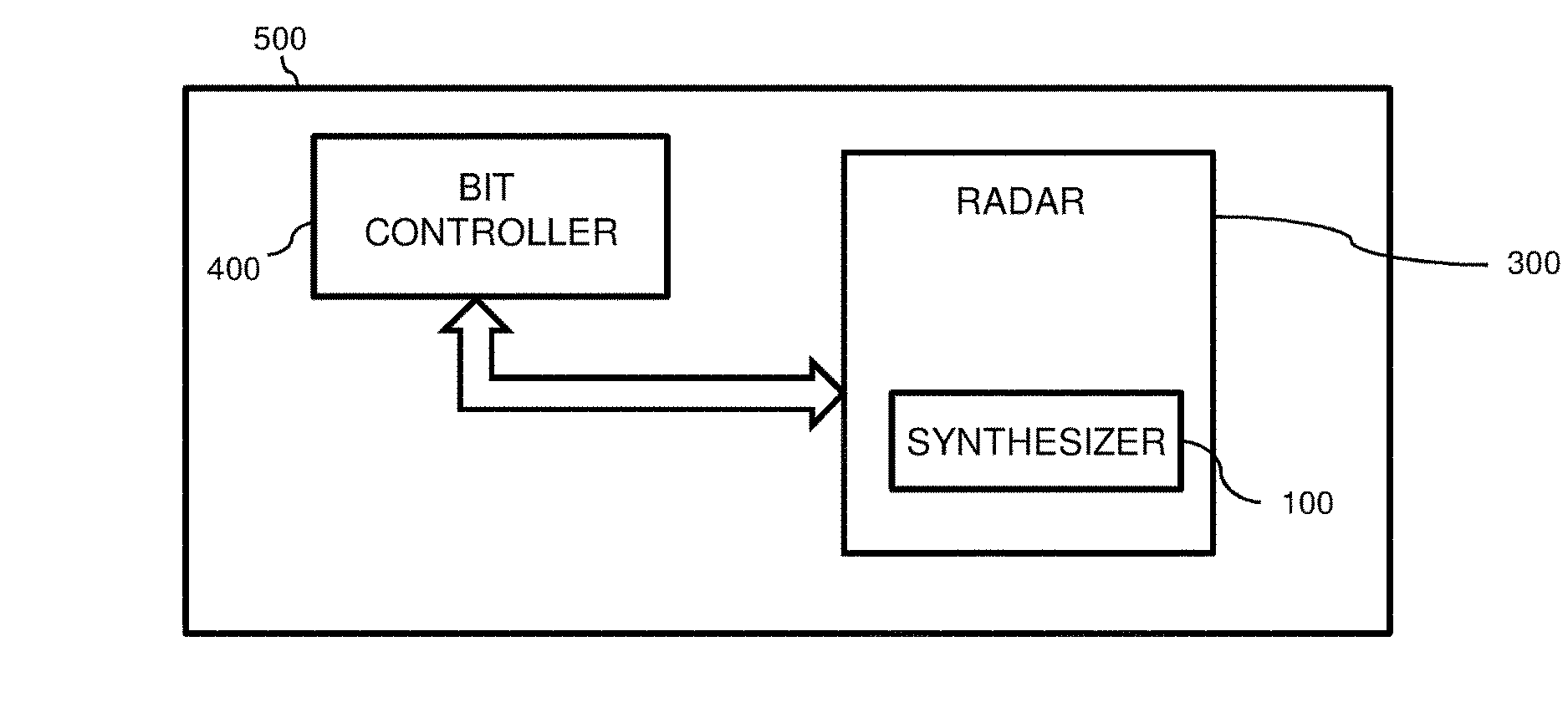

Abstract
A method of testing a frequency synthesizer over a predetermined frequency range using a delay unit complying with a spectral delay distribution model modeling a spectral delay distribution of the delay unit over the predetermined frequency range. The method comprises generating at least one test signal with the frequency synthesizer according to at least one test command; passing the at least one test signal through the delay unit so as to obtain at least one delayed test signal; measuring at least one shift of a signal attribute between the delayed test signal and the test signal; estimating an accuracy of the frequency synthesizer by comparing the at least one measured shift with an expected shift, the expected shift being derived from the spectral delay distribution model of the delay unit and from the at least one test command.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- G01S Class
- 2322 Applications Filed
- 2168 Patents Issued To-Date
- 93.37 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G01S Class
- 13.09 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
