Surface property measuring apparatus and method for controlling the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 29, 2014
filing date -
May 1, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

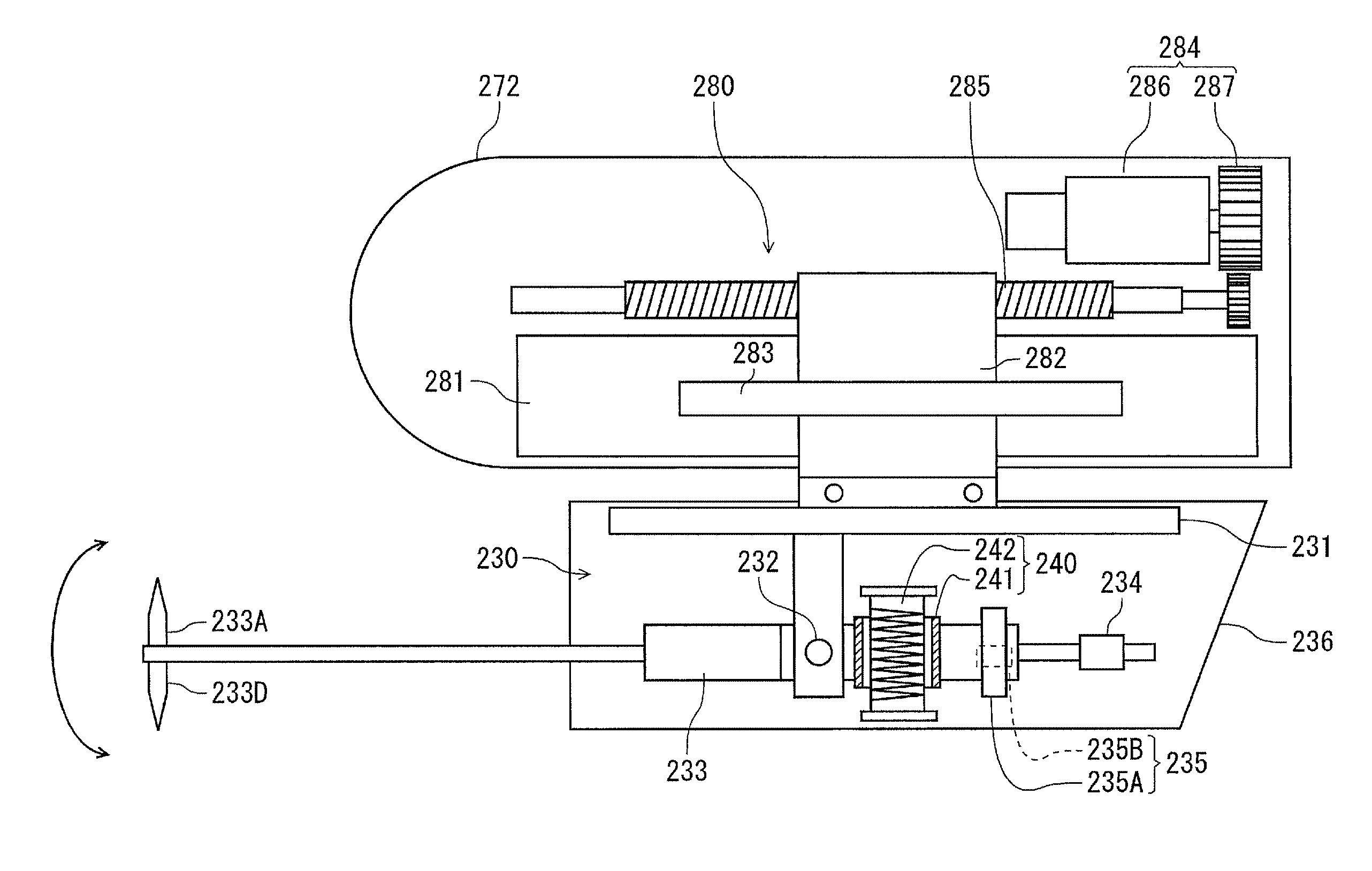

A surface property measuring apparatus includes a control unit, configured to control operations of a roughness measuring instrument and a relative moving mechanism, including: a measuring force command module configured to output a measuring command; and a measuring force control module configured to control the direction and magnitude of the measuring force, wherein the measuring force control module instructs a measuring force application unit of the roughness measuring instrument to generate therein the measuring force whose magnitude and direction are designated by the measuring force command when a displacement speed of a measuring arm is equal to or slower than a predetermined threshold, and the measuring force control module instructs the measuring force application unit to generate therein a force in a direction in which the distal end of the measuring arm is raised upwards when the displacement speed of the measuring arm exceeds the predetermined threshold.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01B Class
- 21.98 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
