Apparatus to interface with a corrugated diaphragm
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 27, 2016
filing date -
Mar 3, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

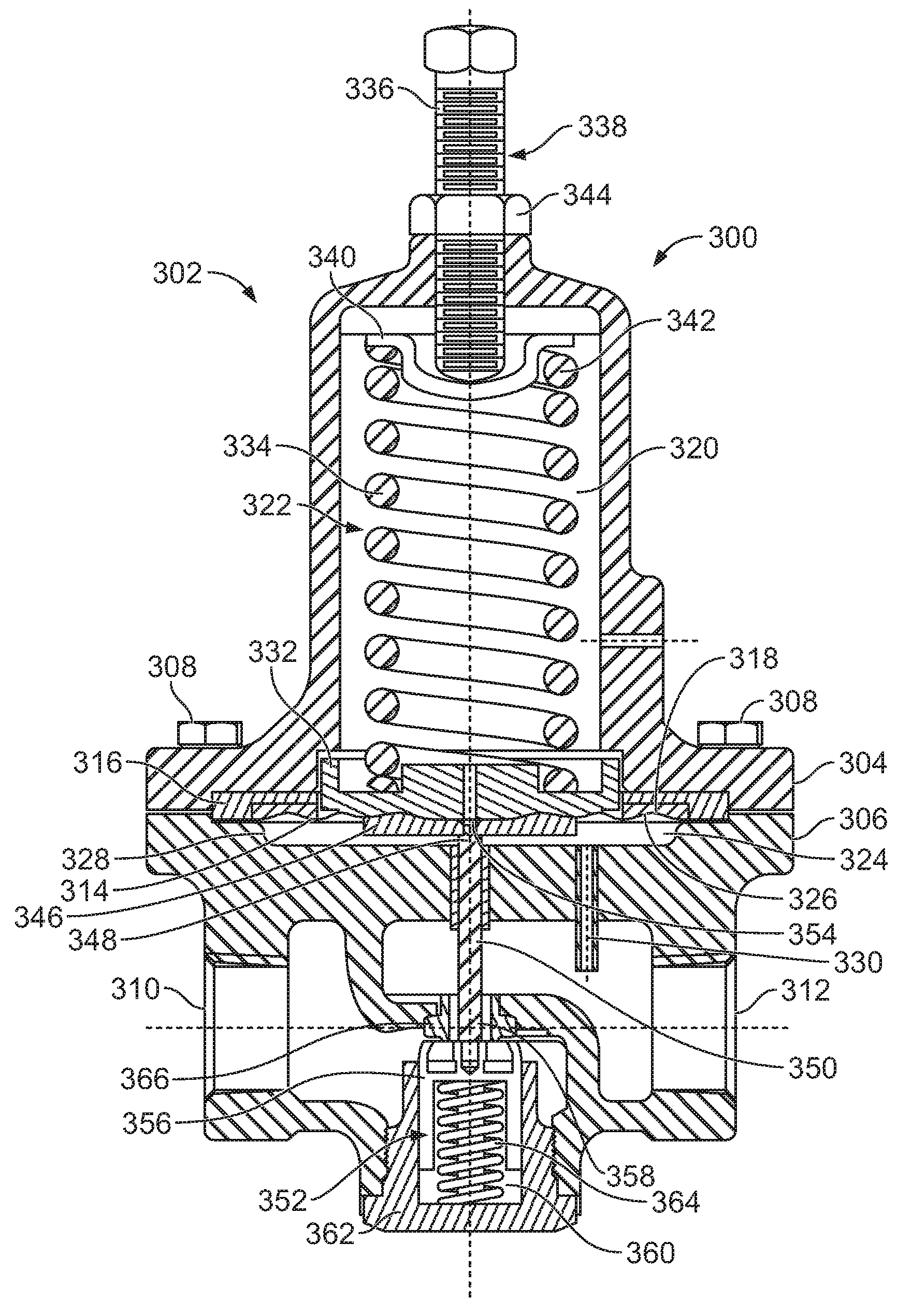

Apparatus to interface with a corrugated profile are disclosed. An example apparatus for use with a fluid regulator includes an elastomeric ring having a corrugated profile that corresponds to a corrugated profile of a diaphragm of the fluid regulator. The elastomeric ring is to be positioned between a valve body and a bonnet of the fluid regulator to clamp the diaphragm between the valve body and the bonnet. The example apparatus includes a metallic ring positioned between the valve body and the bonnet to contact the elastomeric ring to support the elastomeric ring.
