Method and system for MEMS devices with dual damascene formed electrodes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jun 14, 2016
filing date -
Jun 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance

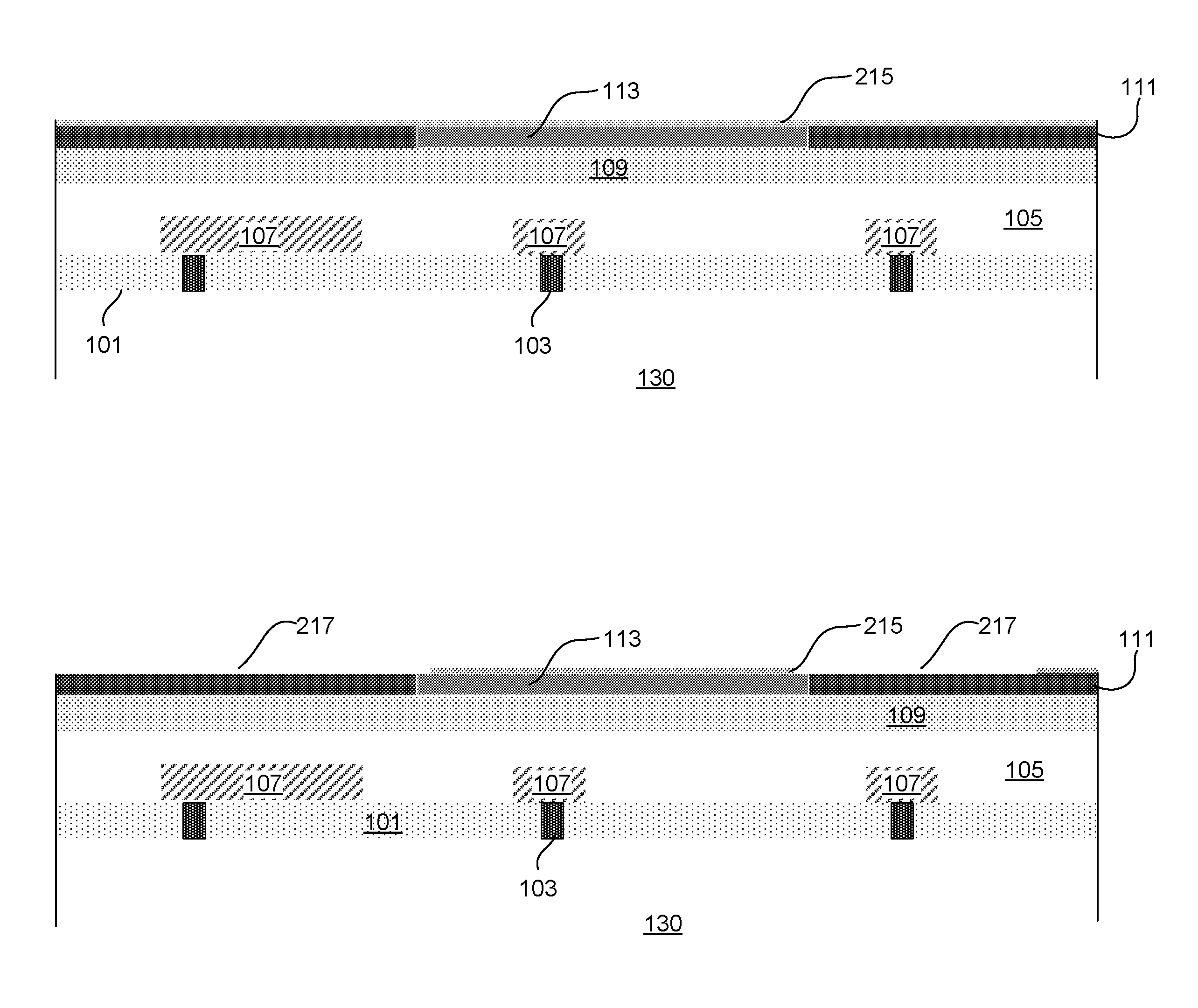

Abstract
Methods and systems for MEMS devices with dual damascene formed electrodes is disclosed and may include forming first and second dielectric layers on a semiconductor substrate that includes a conductive layer at least partially covered by the first dielectric layer; removing a portion of the second dielectric layer; forming vias through the second dielectric layer and at least a portion of the second dielectric layer, where the via extends to the conductive layer; forming electrodes by filling the vias and a volume that is the removed portion of the second dielectric layer with a first metal; and coupling a micro-electro-mechanical systems (MEMS) substrate to the semiconductor substrate. A third dielectric layer may be formed between the first and second dielectric layers. A metal pad may be formed on at least one electrode by depositing a second metal on the electrode and removing portions of the second metal, which may be aluminum.
First Claim
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
