Conveyor with integrated dust collector system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jan 5, 2017
filing date -
Jan 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

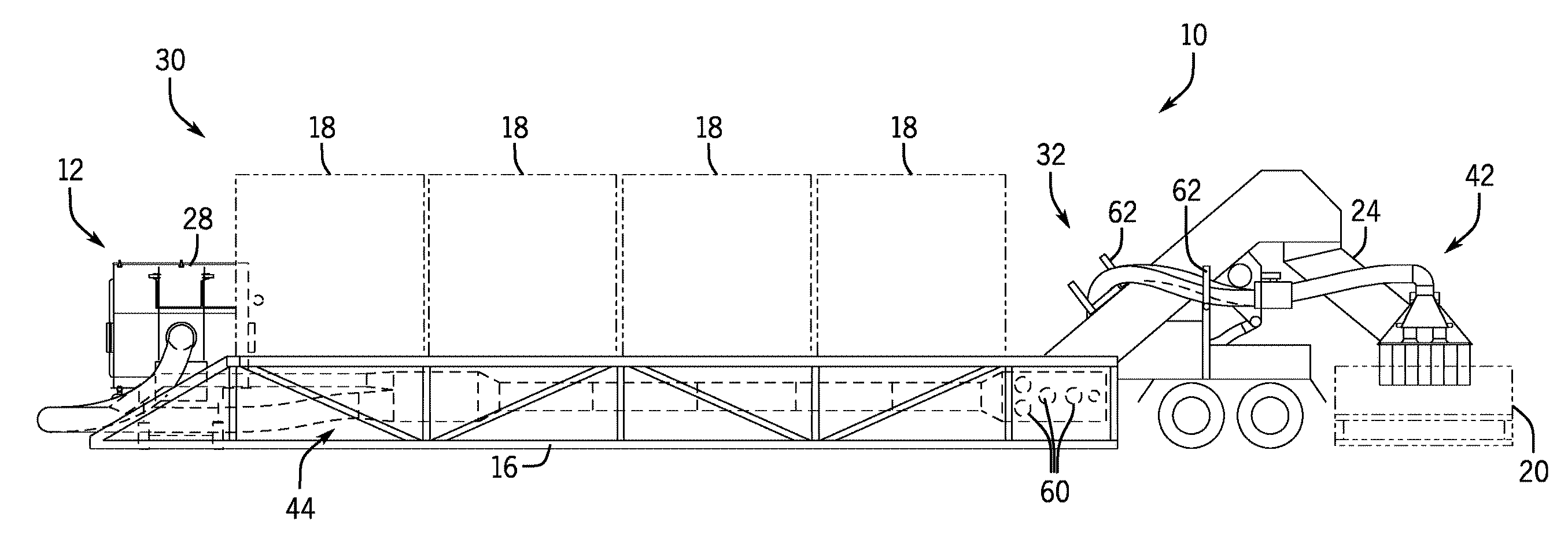

Embodiments of the present disclosure a system for capturing proppant dust particles when positioned at a fracking operation site including a proppant delivery assembly to receive one or more containers having proppant stored therein. The system dispenses the proppant from the one or more containers and delivers the proppant to other fracking operation equipment. Moreover, the system includes a dust collection assembly positioned proximate and associated with the proppant delivery assembly to capture dust particles released by movement and settling of the proppant when being dispensed and delivered by the proppant delivery assembly. The dust collection assembly is positioned to direct an air flow in a flow path overlying the dust particles to capture the dust particles and move the dust particles away from the proppant thereby reducing risk of dust exposure to fracking operation site personnel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B65G Class
- 1906 Applications Filed
- 1508 Patents Issued To-Date
- 79.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B65G Class
- 34.36 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
