Systems and methods for automatically controlling attitude of a marine vessel with trim devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Oct 2, 2015
filing date -
Jun 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

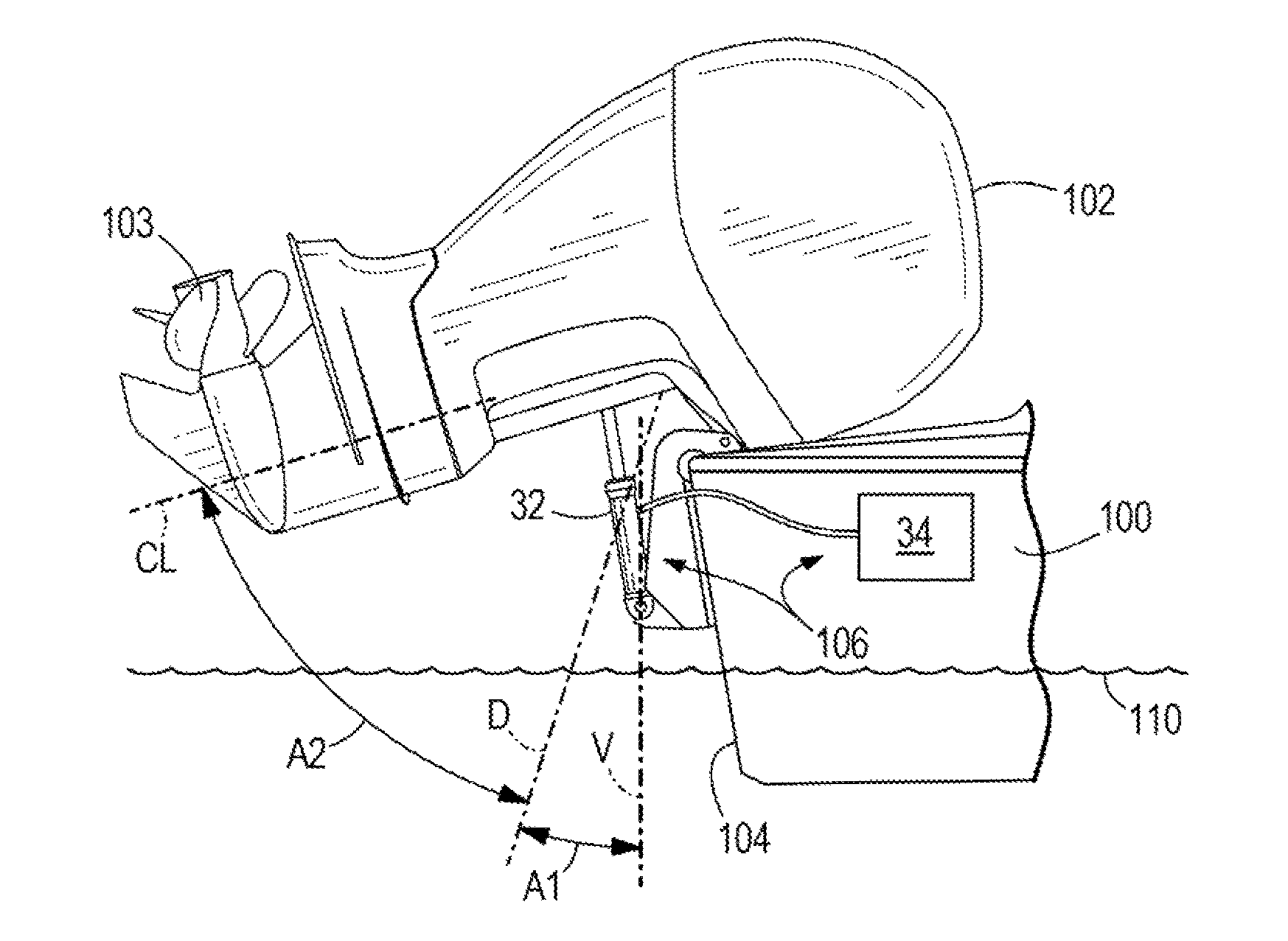

Systems and methods disclosed herein control position of a trimmable drive unit with respect to a marine vessel. A controller determines a target trim position as a function of vessel or engine speed. An actual trim position is measured and compared to the target trim position. The controller sends a control signal to a trim actuator to trim the drive unit toward the target trim position if the actual trim position is not equal to the target trim position and if at least one of the following is true: a defined dwell time has elapsed since a previous control signal was sent to the trim actuator to trim the drive unit; a given number of previous control signals has not been exceeded in an attempt to achieve the target trim position; and a difference between the target trim position and the actual trim position is outside of a given deadband.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B63J Class
- 52 Applications Filed
- 33 Patents Issued To-Date
- 63.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 16 Citation Count
- B63J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
