Hull support structure of liquefied gas tank and liquefied gas carrier
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Apr 21, 2015
filing date -
May 15, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

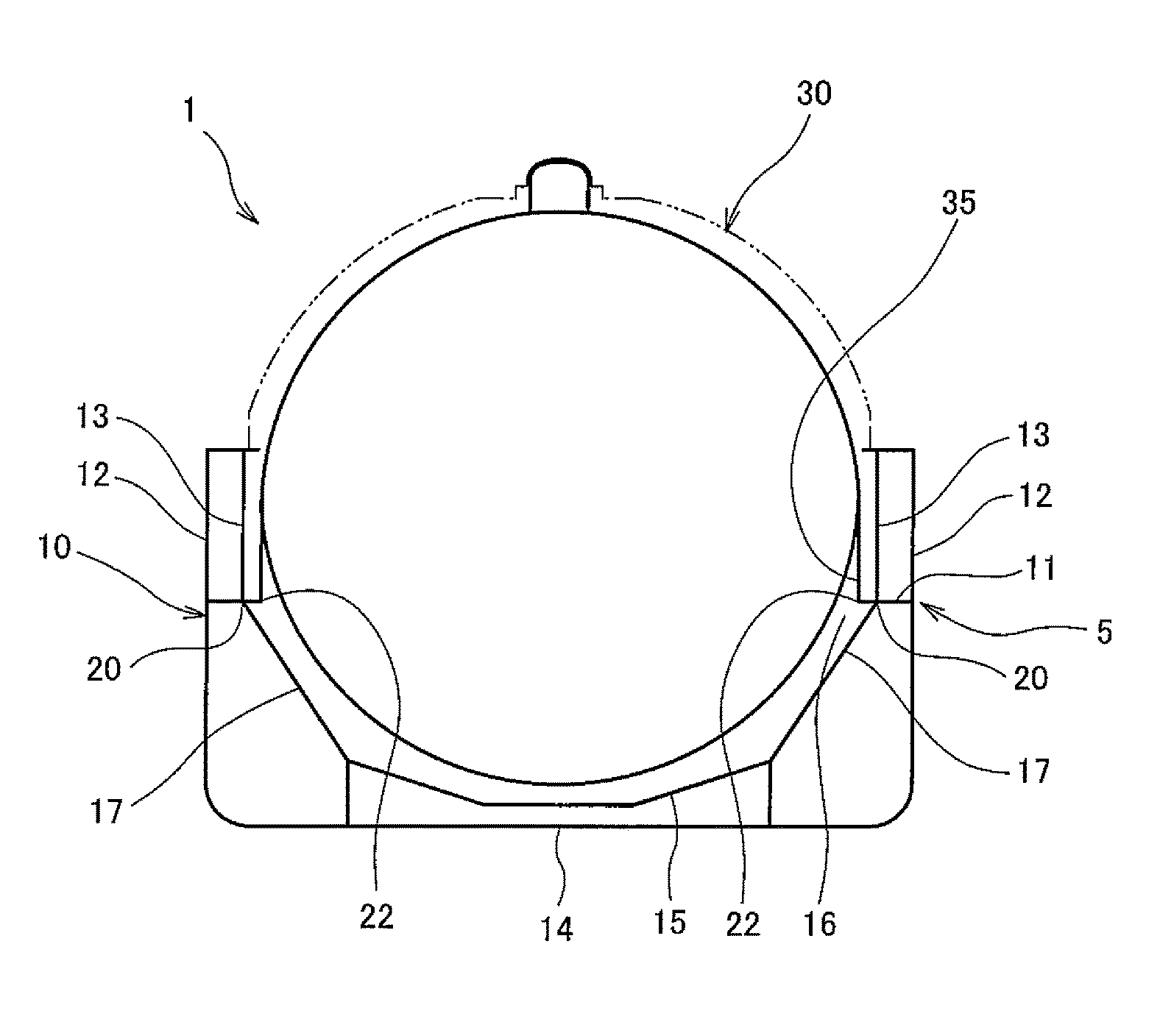

A hull support structure of a liquefied gas tank has a foundation deck disposed around a liquefied gas tank; a skirt which supports the liquefied gas tank on the foundation deck; an inner bottom plate extending in a hull length direction, at a location that is below the liquefied gas tank; and a pair of bilge hopper plates each of which is provided between the foundation deck and corresponding one of both end portions of the inner bottom plate, wherein a plate connection section at which each of the pair of bilge hopper plates is connected to the foundation deck is disposed outward in a hull width direction, relative to a skirt connection section at which the skirt is connected to the foundation deck.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F17C Class
- 326 Applications Filed
- 217 Patents Issued To-Date
- 66.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F17C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
