Adjustable handlebar riser assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jun 12, 2013
filing date -
Jan 31, 2013
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

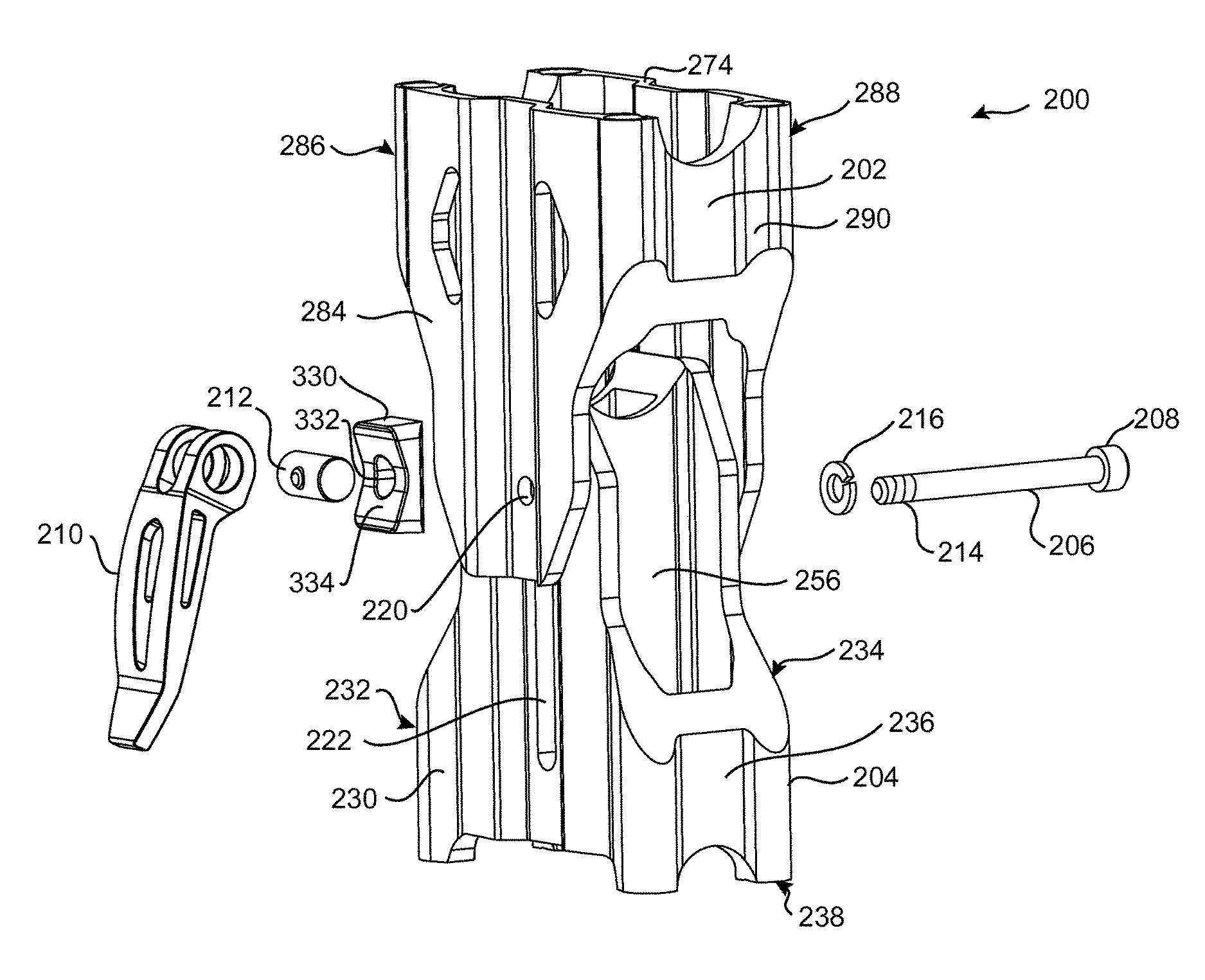

An adjustable handlebar riser assembly has an outer member, an inner member, a pin, a retainer member and a locking member. The inner member and the outer member have mating flat-bottom V-shaped faces. The inner member slides at least in part within the outer member. Each of the outer and inner members has at least one aperture through their flat-bottom V-shaped faces. The pin is inserted in an aperture of the outer member and in an aperture of the inner member. The retaining member is connected to the pin at one end while the locking member is connected to an opposed end of the pin. The locking member can exert a tension on the pin, pressing the outer member onto the inner member for locking these members at a selected position relative to one another.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BOMBARDIER RECREATIONAL PRODUCTS INC | VALCOURT QUÉBEC J0E 2L0 |
International Classification(s)
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Bedard, Yvon | Orford, CA | 42 | 300 |
# of filed Patents : 42 Total Citations : 300 | |||
Labbe, Christian | Sherbrooke, CA | 54 | 792 |
# of filed Patents : 54 Total Citations : 792 | |||
Lavoie, Alain | Drummondville, CA | 10 | 47 |
# of filed Patents : 10 Total Citations : 47 | |||
Mercier, Mathieu | Sherbrooke, CA | 46 | 248 |
# of filed Patents : 46 Total Citations : 248 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
