Front suspension system having overload protection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
May 6, 2013
filing date -
Jun 13, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

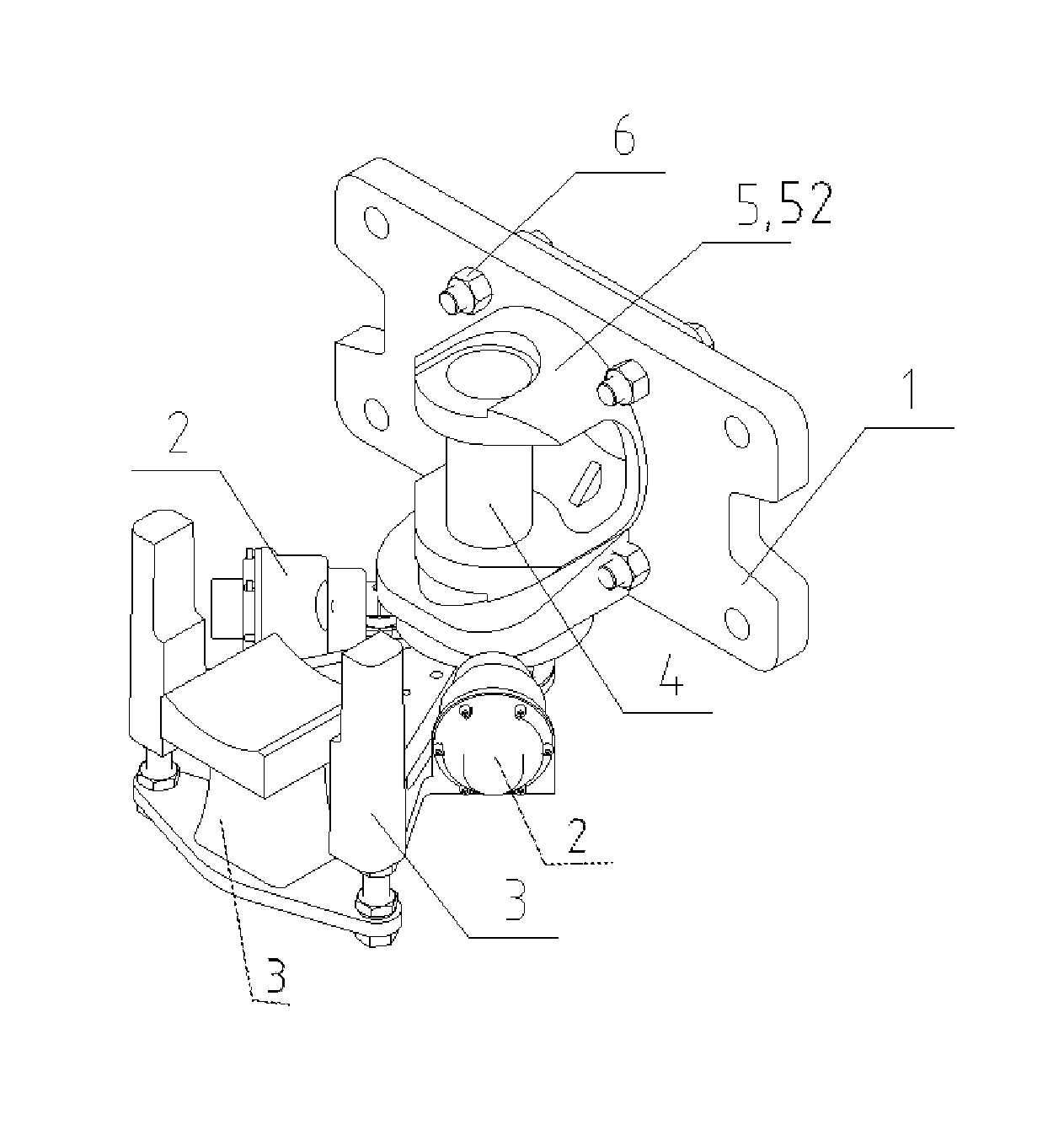

Disclosed is a front suspension system having overload protection. The system comprises a mounting seat, a centering device, a support device used for supporting a coupling buffer and a coupling end pin, wherein the mounting seat is connected to a railway vehicle body, and the centering device and the support device are both installed on the mounting seat. The system further has a coupling connection seat and an overload protection element, wherein the coupling connection seat comprises a base and a coupling connection part connected as one with the base. The base is connected to a rear face of the mounting seat by means of the overload protection element. The coupling connection part passes through a through hole provided in the middle of the mounting seat and is connected with the coupling buffer by means of the coupling end pin. The coupling connection part is closely fitted with the through hole. The front suspension system has a simple structure and is lightweight.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B61G Class
- 19 Applications Filed
- 18 Patents Issued To-Date
- 94.74 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B61G Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
