Gear machining apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
Jul 6, 2016
filing date -
Jul 9, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

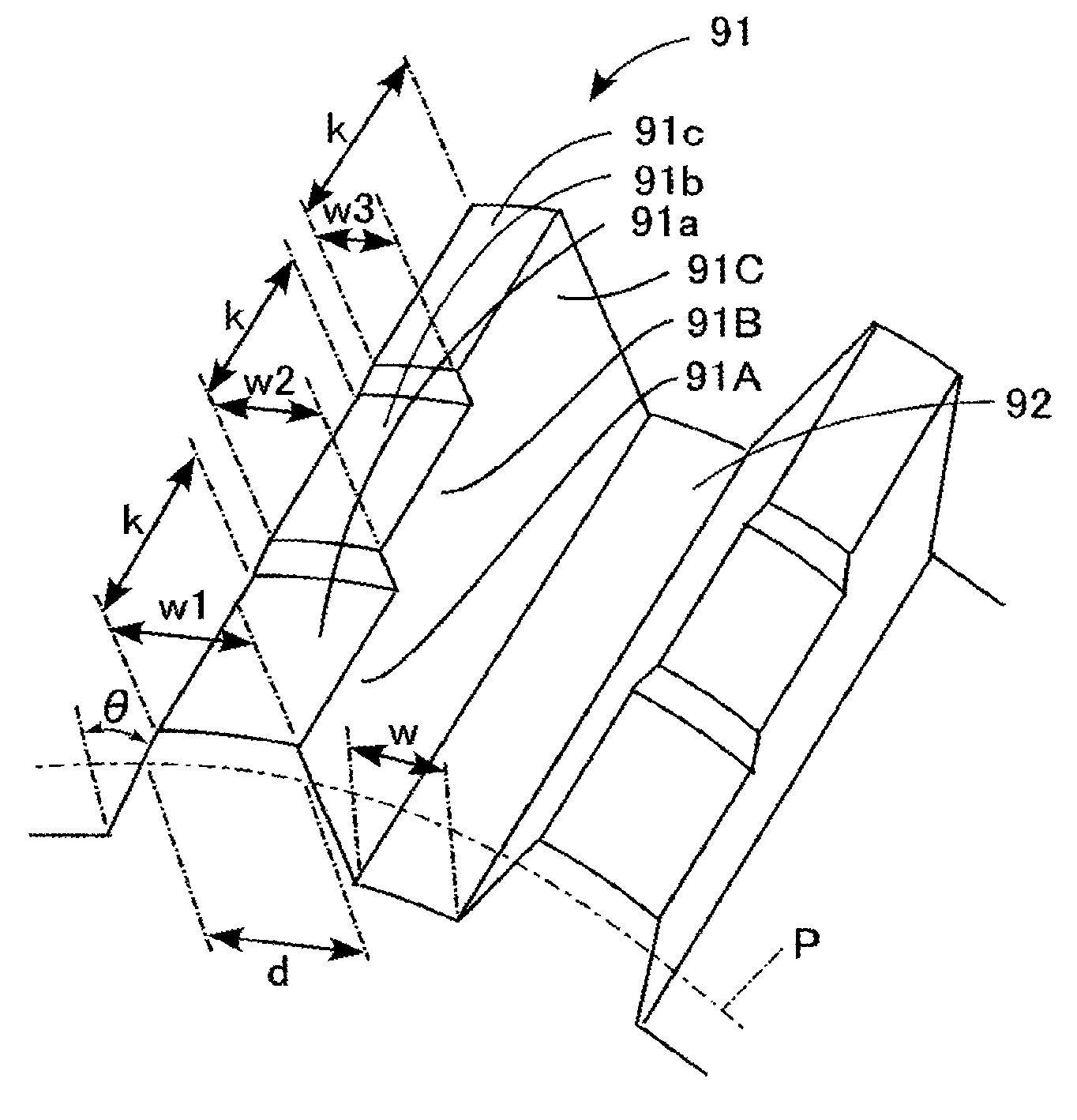

A gear machining apparatus includes a machining tool having a plurality of protruding tool edges on an outer periphery of the machining tool, and driving apparatuses that form a tooth on a work piece by rotating the machining tool around a central axis thereof, rotating the work piece W around a central axis thereof, and moving the machining tool relative to the work piece. Radial outer faces of the protruding tool edges form multiple steps that are parallel to the central axis of the machining tool such that the diameter of the machining tool increases in a stepwise manner from a tool leading end toward a tool base end of the machining tool.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B23F Class
- 54 Applications Filed
- 47 Patents Issued To-Date
- 87.04 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
