Cervical plate with a feedback device for selective association with bone screw blocking mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 20, 2018
Issued Date -
N/A
app pub date -
May 26, 2016
filing date -
Nov 9, 2007
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

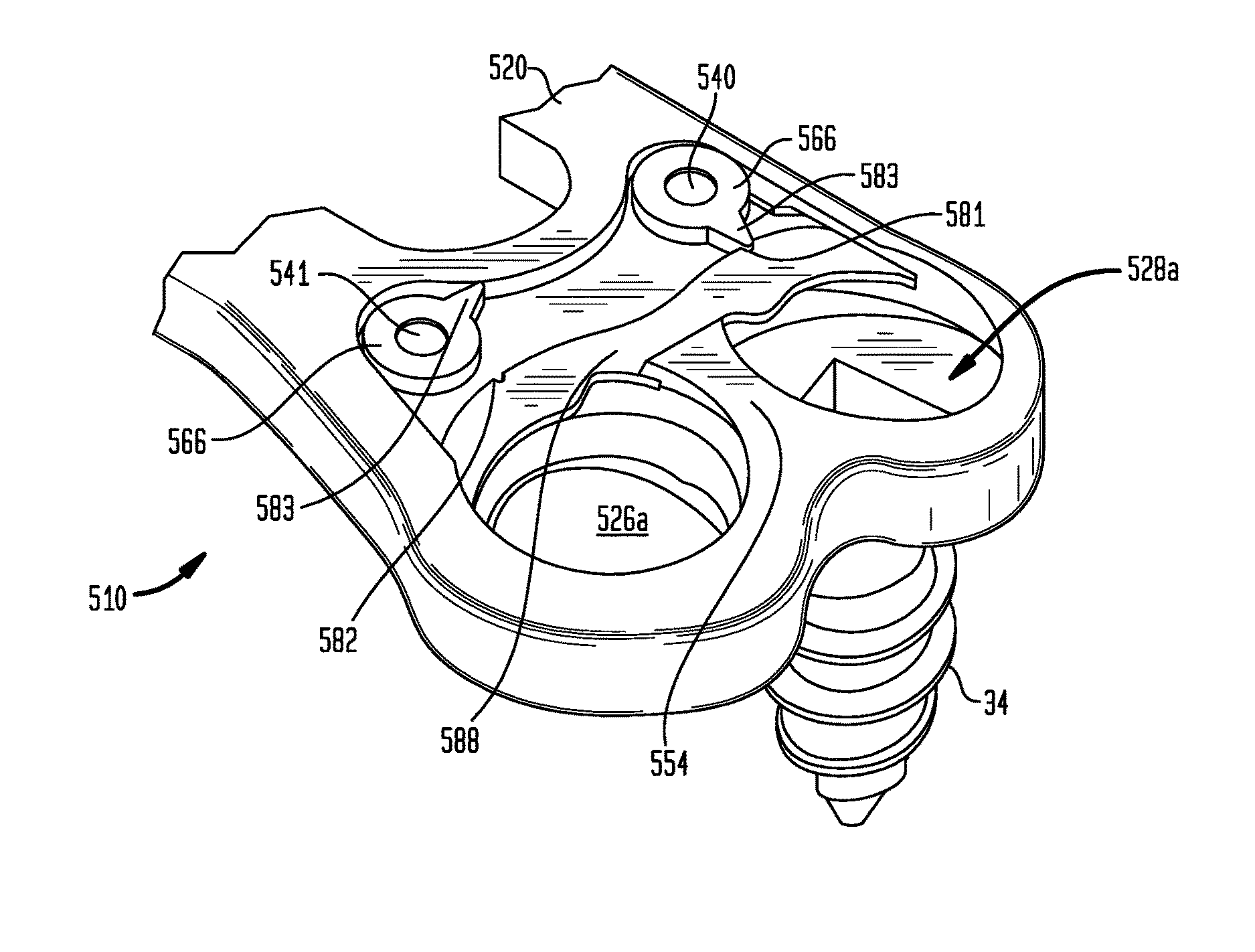

A bone plate having at least one screw hole adapted to receive a bone screw, a blocker having a blocking end for blocking a bone screw from further backout of bone the blocker being predisposed in a blocking position wherein the blocking end at least partially overlaps a portion of the screw hole, the blocker being moveable from the blocking position by contact with the bone screw during insertion of the bone screw into the screw hole, and a blocker fixation element having an open orientation at which the blocker can move from the blocking position and a closed orientation preventing substantial movement of the blocker from the blocking position. The blocker fixation element cannot be moved to the closed orientation unless the screw head passes the blocker, thereby revealing that the blocker fixation element is in position to prevent substantial movement of the blocker.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A61B Class
- 18399 Applications Filed
- 13681 Patents Issued To-Date
- 74.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- A61B Class
- 20.51 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 20, 2029 |
