Surface mount device stacking for reduced form factor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Apr 17, 2017
filing date -
Apr 18, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

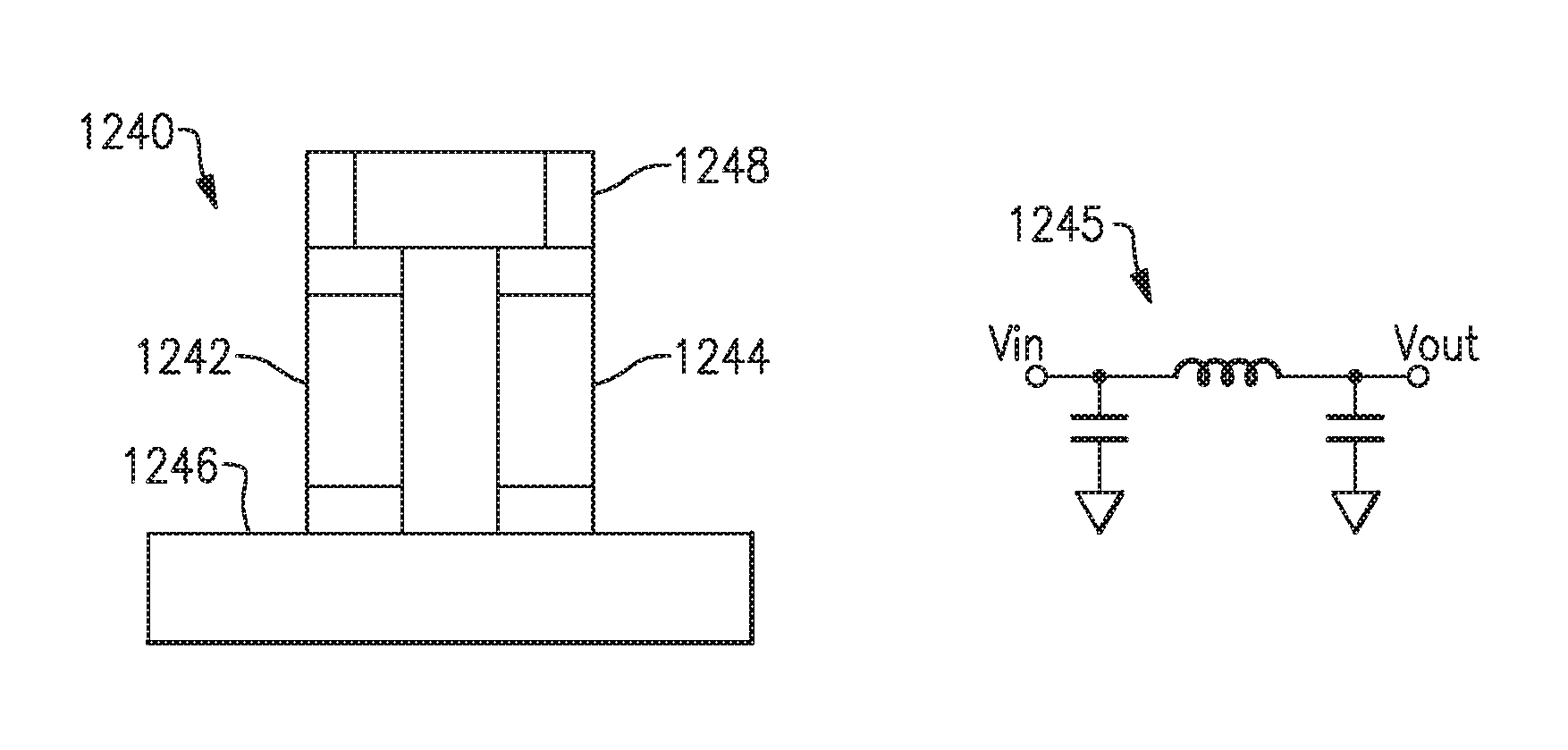

A packaged module for use in a wireless communication device has a substrate supporting an integrated circuit die that includes at least a microprocessor and radio frequency receiver circuitry and a stacked filter assembly configured as a filter circuit that is in communication with the radio frequency receiver circuitry. The stacked filter assembly includes a plurality of passive components, where each passive component is packaged as a surface mount device. At least one passive component is in direct communication with the substrate and at least another passive component is supported above the substrate by the at least one passive component that is in the direct communication with the substrate.
