Network connectivity switching utilizing an authentication device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Nov 23, 2015
filing date -
Nov 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

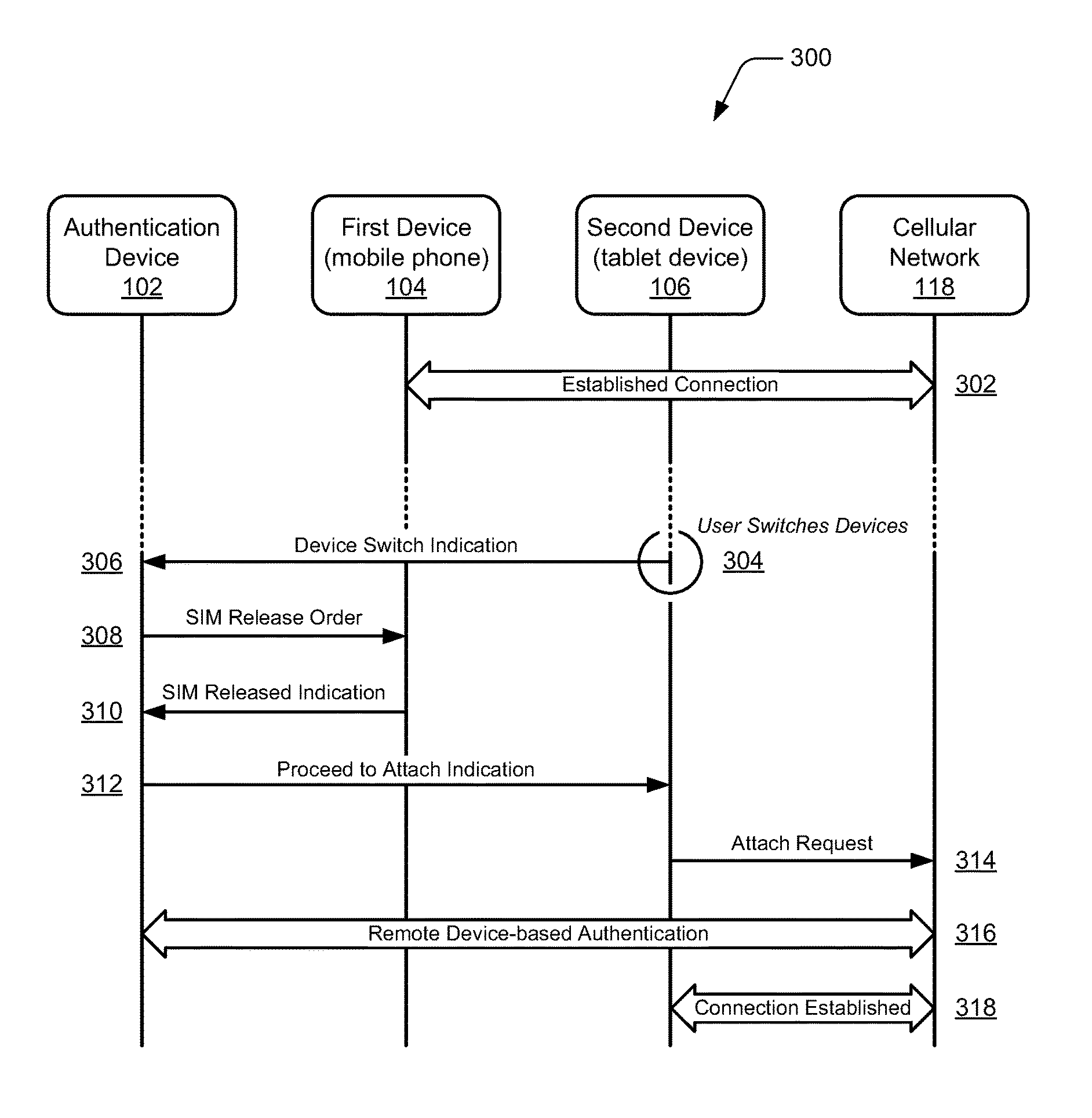

In embodiments of network connectivity switching utilizing an authentication device for switching network connectivity from a first device to a second device, the authentication device receives a device switch indication from the second device, which can communicate via a cellular network. The authentication device communicates a device switch order to the first device, which is authenticated and communicatively linked for wireless communication via the cellular network. The authentication device communicates a network attach indication to the second device that then communicates an attach request to the cellular network, and the authentication device authenticates the second device to the cellular network. Alternatively, the authentication device receives a device switch indication from the second device and communicates a device switch order to the first device. The first device then communicates connection reestablishment information to the second device that initiates a connection reestablishment with the cellular network based on the connection reestablishment information.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2015 Application Filing Year
- H04W Class
- 20427 Applications Filed
- 16487 Patents Issued To-Date
- 80.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H04W Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
