Visual and tactile assessment tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Nov 13, 2015
filing date -
Nov 13, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

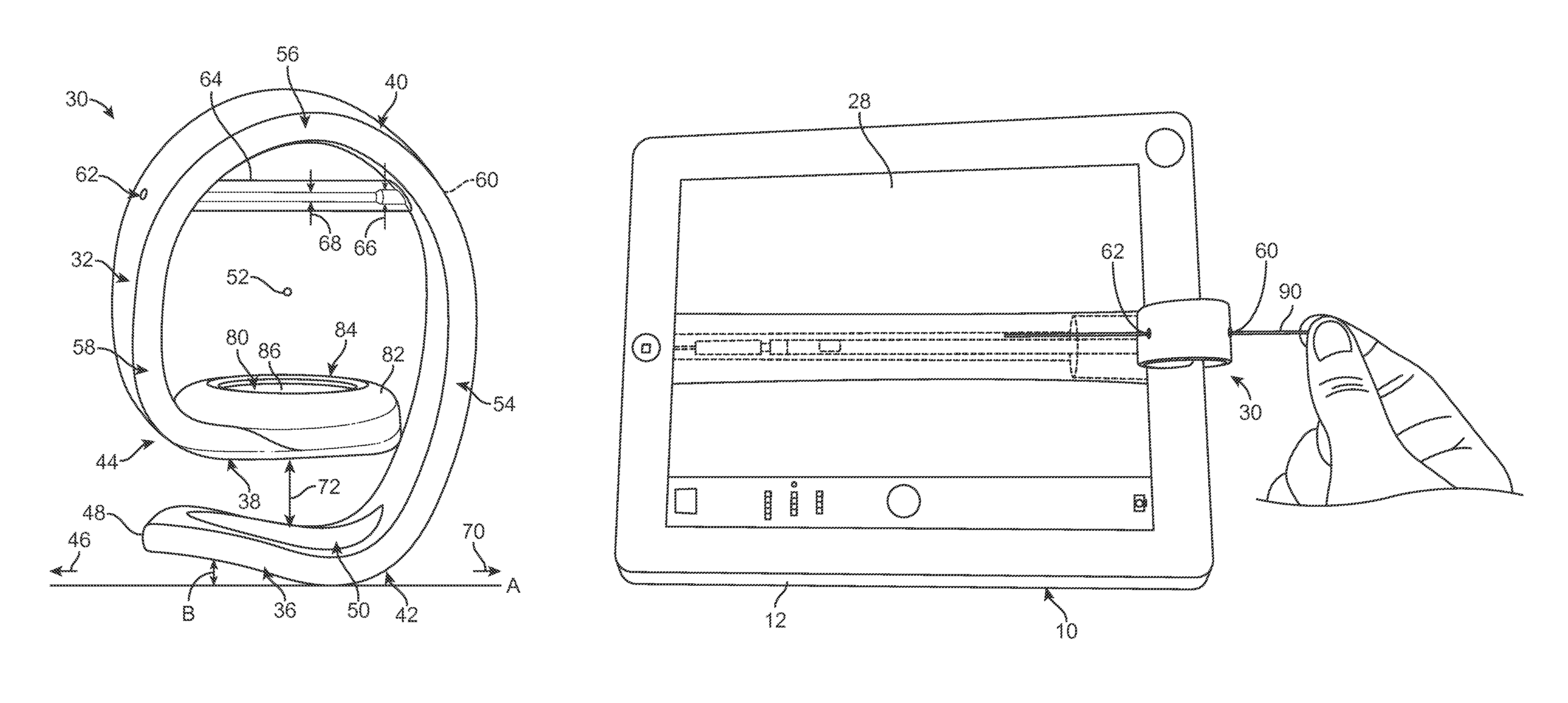

A selectively attachable and removable visual and tactile assessment tool or clip for use with a mobile device is provided. Clip is an elongate member forming a curvilinear shape having a magnifying lens at a distal end thereof. Clip has a transparent tubular member disposed between first and second openings through the body portion of the clip. Tubular member has varying internal diameters to simulate, for example, the constriction or stenosis of a patient's vessel lumen. Once clip is attached to mobile device and the magnifying lens is positioned over the camera of the mobile device, a catheter is inserted through tubular member. The magnifying lens enlarges the size of the catheter displayed on the screen of the mobile device.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H04M Class
- 4919 Applications Filed
- 4207 Patents Issued To-Date
- 85.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
