Brown-out detector and power-on-reset circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Aug 31, 2016
filing date -
Aug 31, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

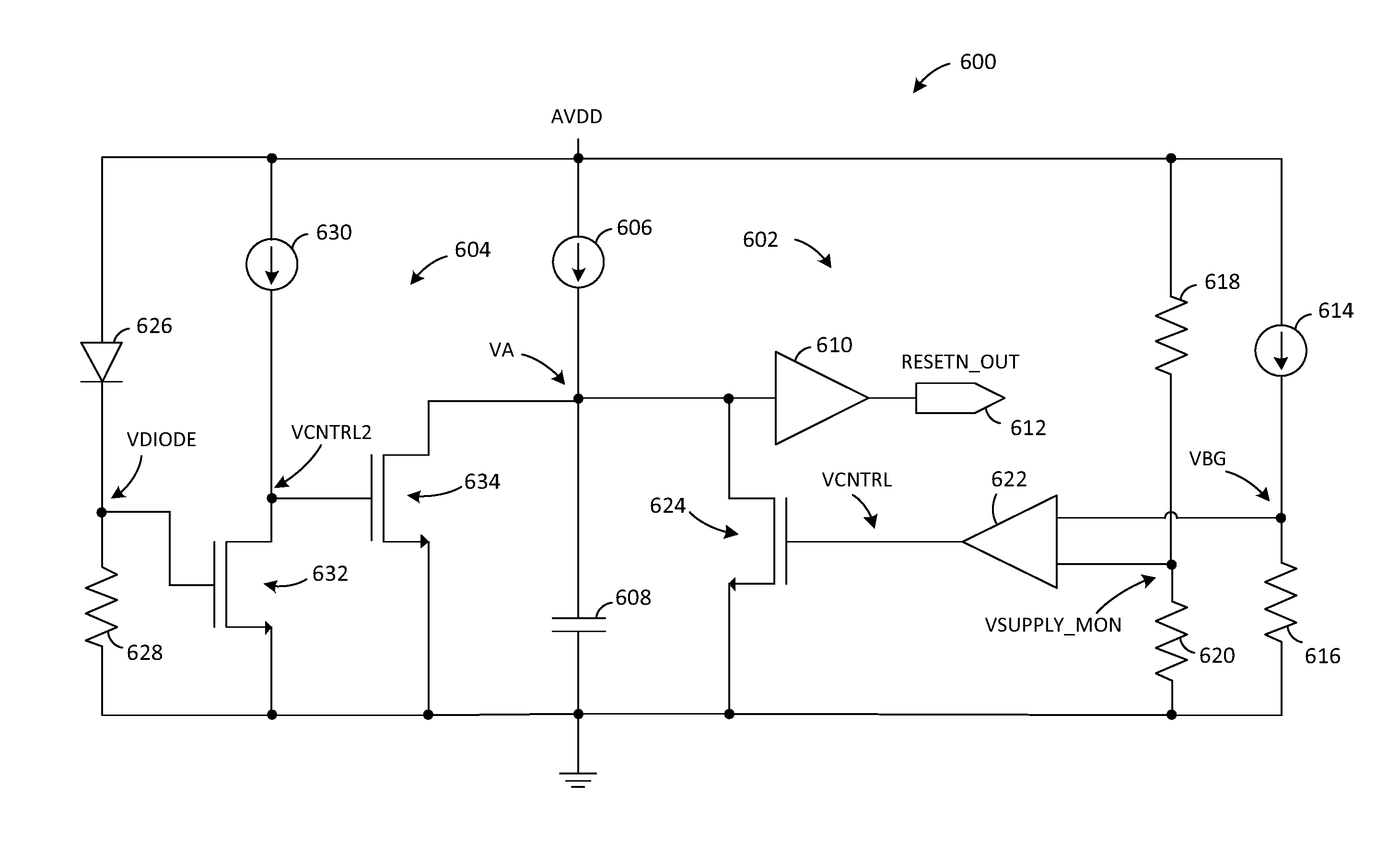

A brown-out detector and power-on-reset circuit can be used to monitor a supply voltage to determine when brown-out and power-on events occur and provide the appropriate reset signal in response. The circuit can include a comparator to generate the reset signal and a first monitoring circuit that operates in conjunction with a second monitoring circuit to provide an input voltage to the comparator. The first monitoring circuit can incorporate a bandgap circuit and can be used to control the input voltage based on the comparison of the supply voltage and a corresponding supply voltage threshold. The second monitoring circuit can incorporate a diode and can be used when the supply voltage is lower than a threshold voltage for the bandgap circuit. The second monitoring circuit can be used to control the input voltage based on a comparison of the supply voltage and a threshold voltage for the diode.
