Chassis-excited antenna apparatus and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Feb 10, 2014
filing date -
Feb 11, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

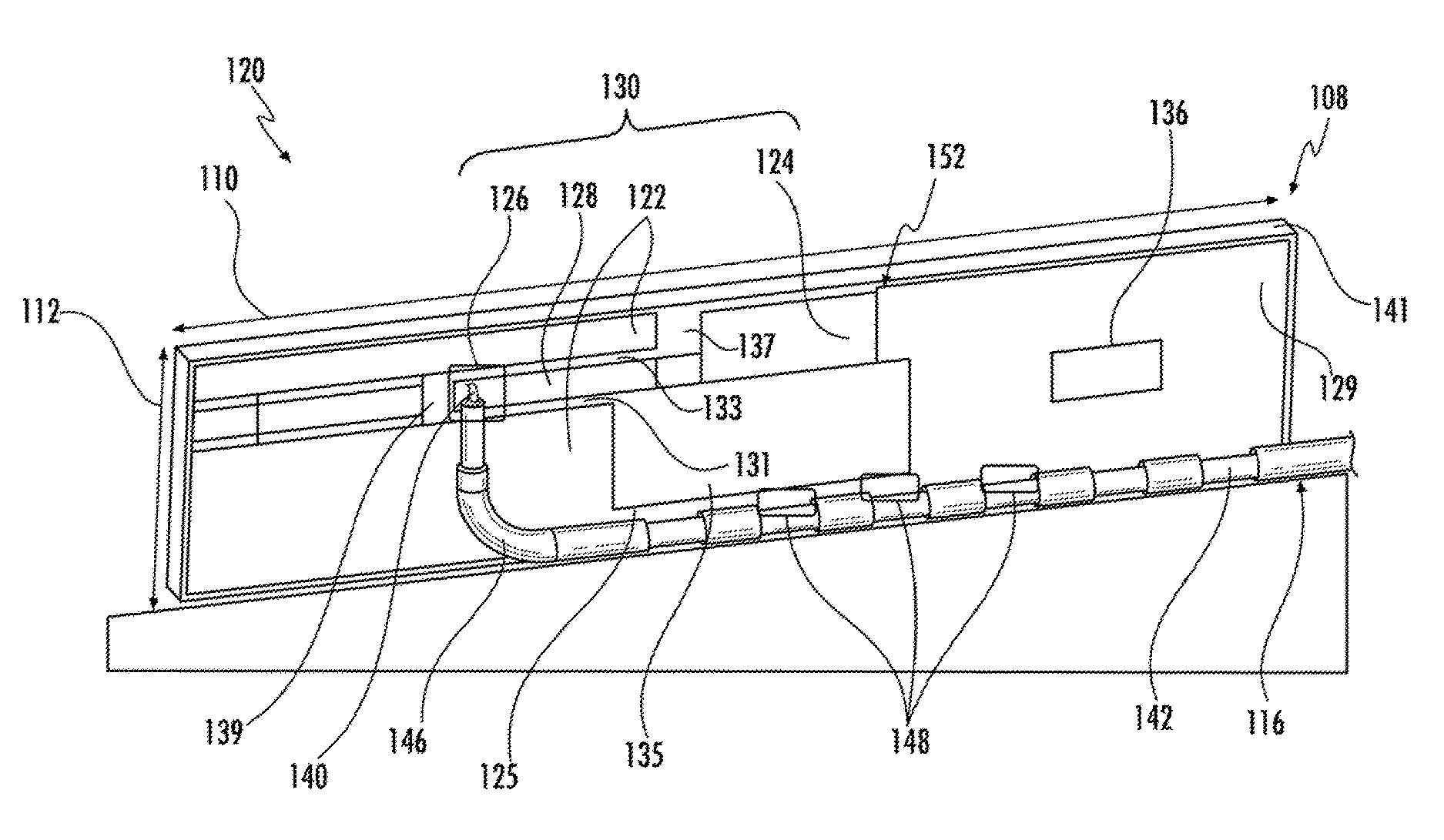

A chassis-excited antenna apparatus, and methods of tuning and utilizing the same. In one embodiment, a distributed loop antenna configuration is used within a handheld mobile device (e.g., cellular telephone). The antenna comprises two radiating elements: one configured to operate in a high-frequency band, and the other in a low-frequency band. The two antenna elements are disposed on different side surfaces of the metal chassis of the portable device; e.g., on the opposing sides of the device enclosure. Each antenna component comprises a radiator and an insulating cover. The radiator is coupled to a device feed via a feed conductor and a ground point. A portion of the feed conductor is disposed with the radiator to facilitate forming of the coupled loop resonator structure.
