Semiconductor package device and method of manufacturing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Apr 4, 2017
filing date -
Jan 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

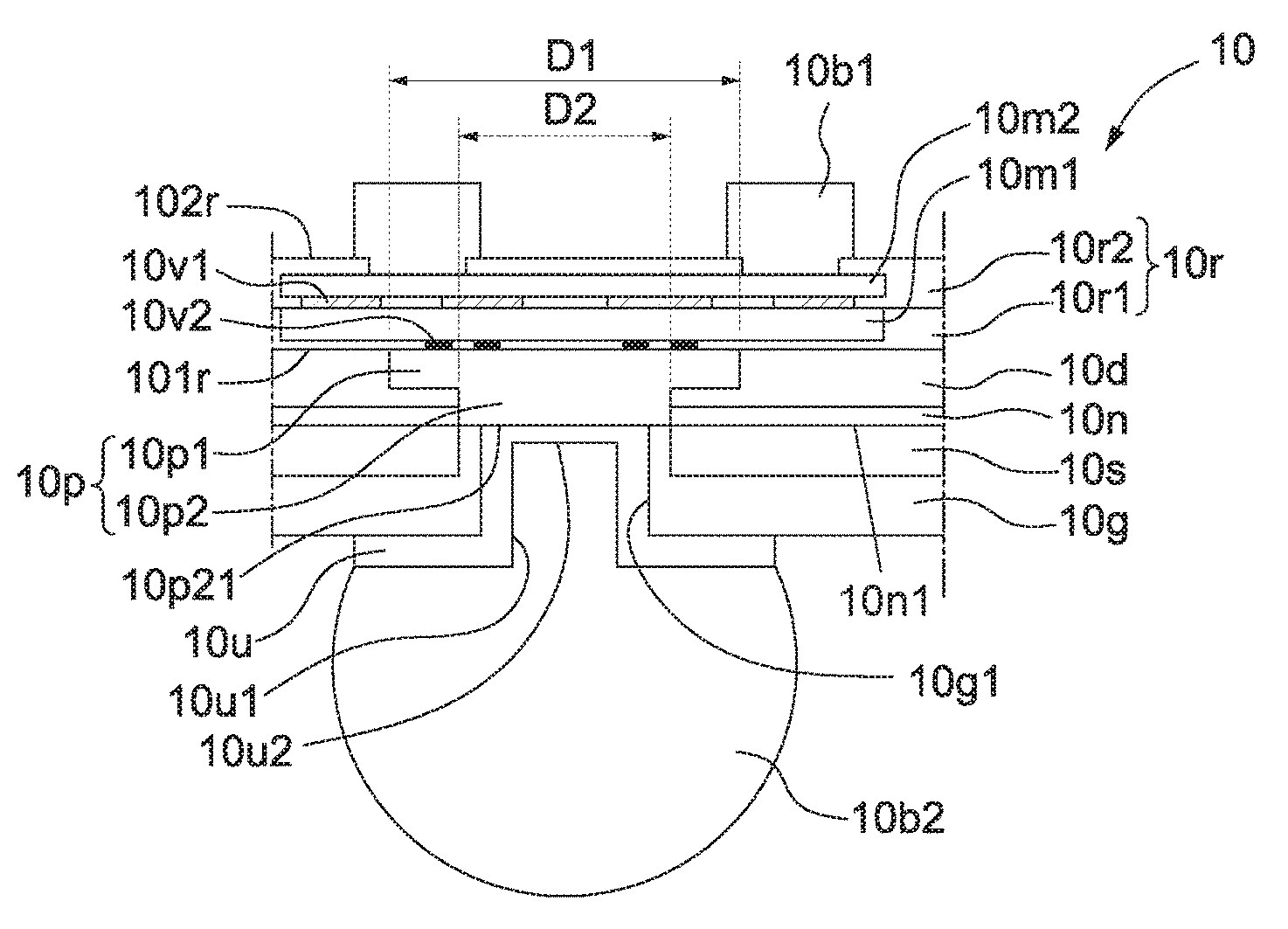

In one or more embodiments, a semiconductor package includes a redistribution layer, a conductive pad, a dielectric layer, a silicon layer, and a conductive contact. The redistribution layer includes a first surface and a second surface opposite to the first surface. The conductive pad is on the first surface of the redistribution layer. The dielectric layer is disposed on the first surface of the redistribution layer to cover a first portion of the conductive pad and to expose a second portion of the conductive pad. The silicon layer is disposed on the dielectric layer, the silicon layer having a recess to expose the second portion of the conductive pad. The conductive contact is disposed over the silicon layer and extends into the recess of the silicon layer.
