Device for joining a bimetal strip and a component forming a support for said bimetal strip, and electrical protection unit comprising same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Nov 8, 2016
filing date -
Dec 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

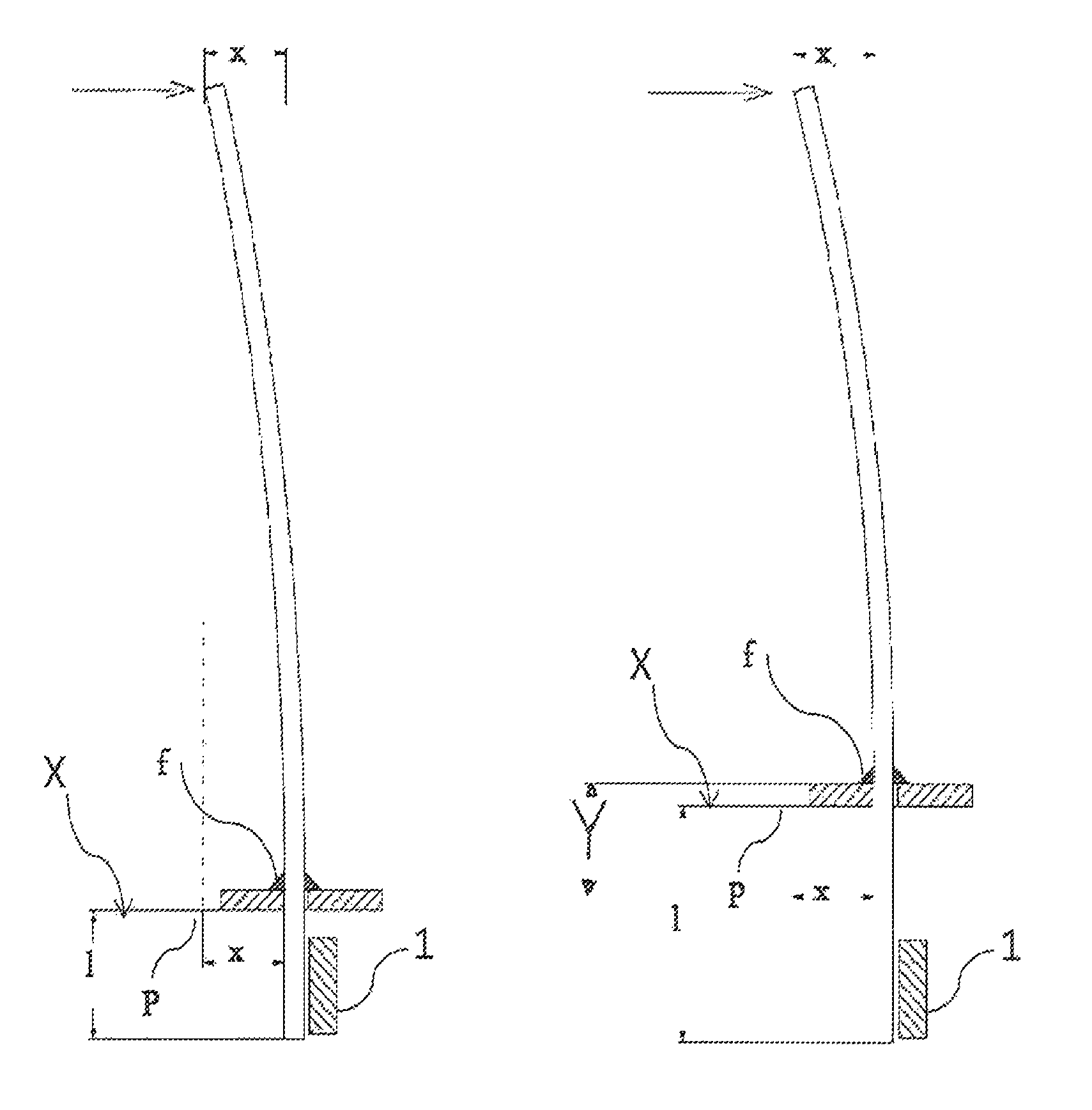

A device for joining a bimetal strip and a component that acts as a support for the bimetal strip in a current breaking unit, the bimetal strip being electrically connected by a free end, to a input connection area, and by another end, by way of which the bimetal strip is fixed to the support, to a output connection area. The bimetal strip is mounted to pass through the support to be fixed at different locations along the length of the bimetal strip, the bimetal strip having a first part and a second part that are situated respectively on one side and the other of the support, the first part being on the side of the free end, corresponding to the usable surface of the bimetal strip, the length of the usable surface being variable depending on the insertion length of the bimetal strip in the support, the insertion length being determined depending on the calibre of the unit to obtain a constant thermal profile, regardless of the calibre, and to an electrical protection unit with same.
