Button with flexible light conductor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Jan 21, 2016
filing date -
Dec 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

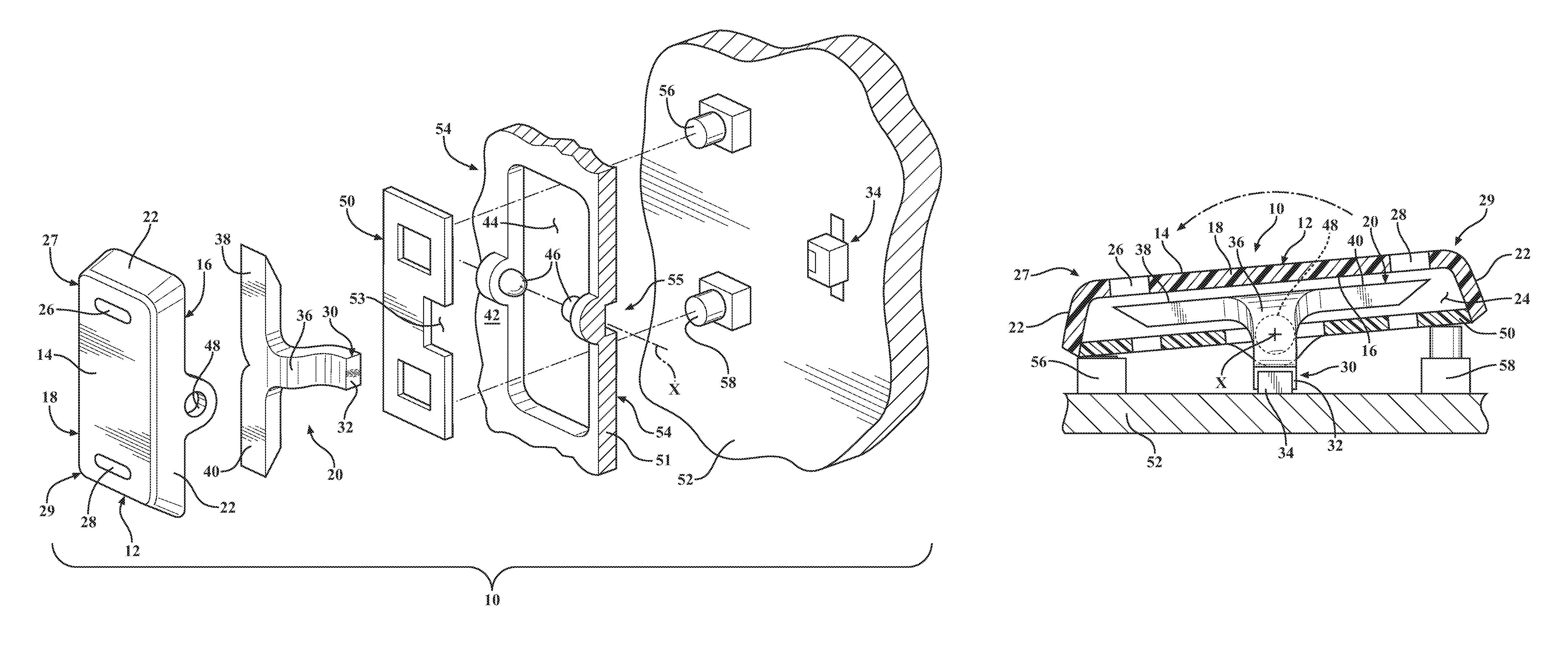

A button assembly configured to be illuminated is provided. The button assembly includes a movable button having a viewing surface and a back side. The button has portions defining a window in the viewing surface. A flexible light conductor is disposed on the back side of the button. The flexible light conductor has an inlet end configured to receive light, and the flexible light conductor has a light-emitting portion disposed adjacent to the window. The flexible light conductor is configured to conduct light from the inlet end to the light-emitting portion. The light-emitting portion is configured to emit light so that the light is visible through the window.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01H Class
- 26.63 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
