Systems and methods for storing spent nuclear fuel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Jan 6, 2014
filing date -
Mar 18, 2004
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

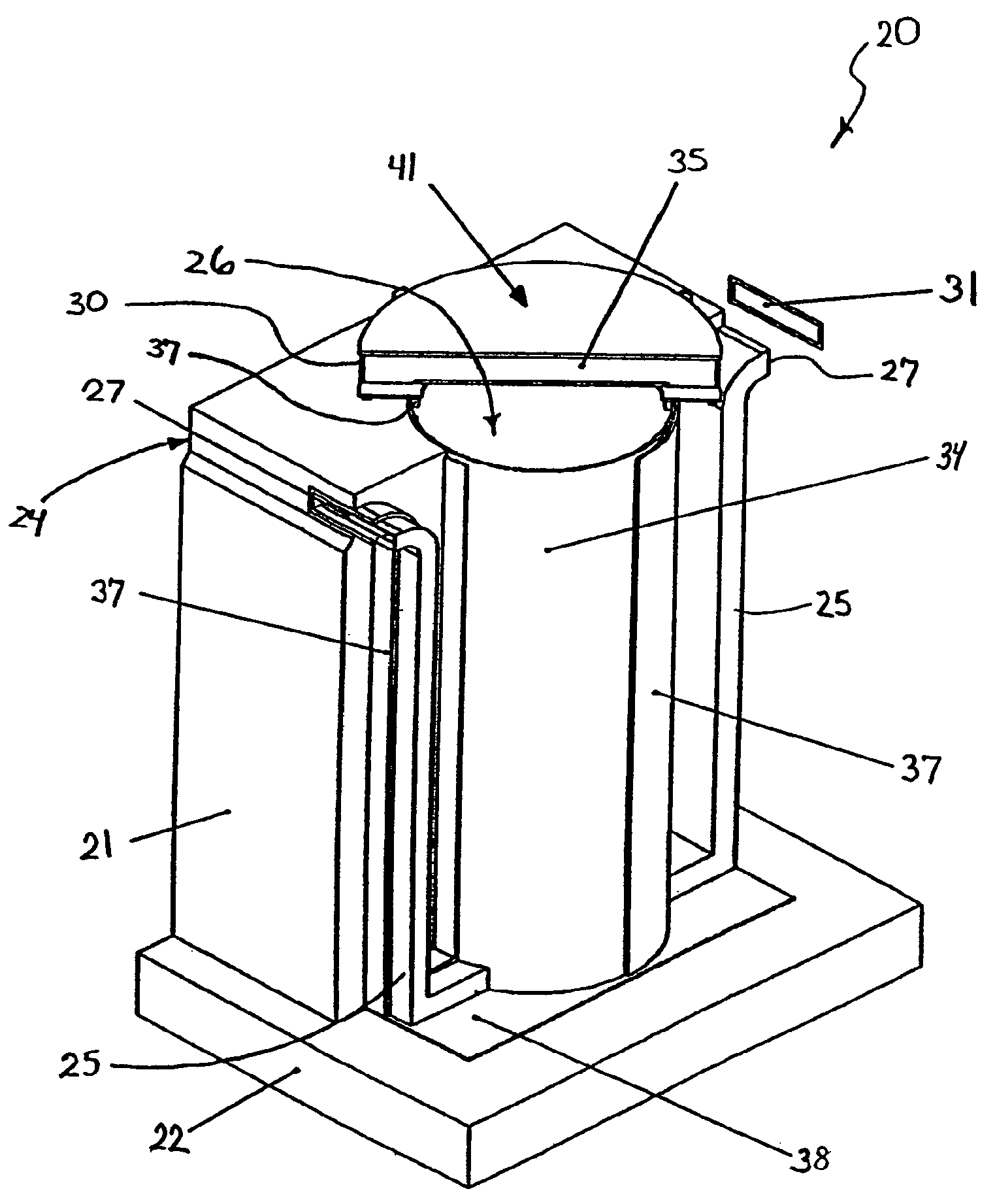

Systems and methods for storing spent nuclear fuel below grade that afford adequate ventilation of the spent fuel storage cavity. In one aspect, the invention is a system comprising: a shell forming a cavity for receiving a canister of spent nuclear fuel, at least a portion of the shell positioned below grade; and at least one inlet ventilation duct extending from an above grade inlet to a below grade outlet at or near a bottom of the cavity; the inlet ventilation duct connected to the shell so that the cavity is hermetically sealed to ingress of below grade fluids. In another aspect, the invention is a method comprising: providing a below grade hole; providing a system comprising a shell forming a cavity for receiving a canister of spent nuclear fuel, at least a portion of the shell positioned below grade, and at least one inlet ventilation duct extending from an inlet to an outlet at or near a bottom of the cavity, the inlet ventilation duct connected to the shell; positioning the apparatus in the hole so that the inlet of the inlet ventilation duct is above grade and the outlet of the inlet ventilation duct into the cavity is below grade; filling the hole with engineered fill; and lowering a spent fuel canister into the cavity.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G21C Class
- 253 Applications Filed
- 210 Patents Issued To-Date
- 83.01 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G21C Class
- 51.06 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
