Multiplexing communication system and working robot
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Oct 9, 2013
filing date -
Oct 9, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

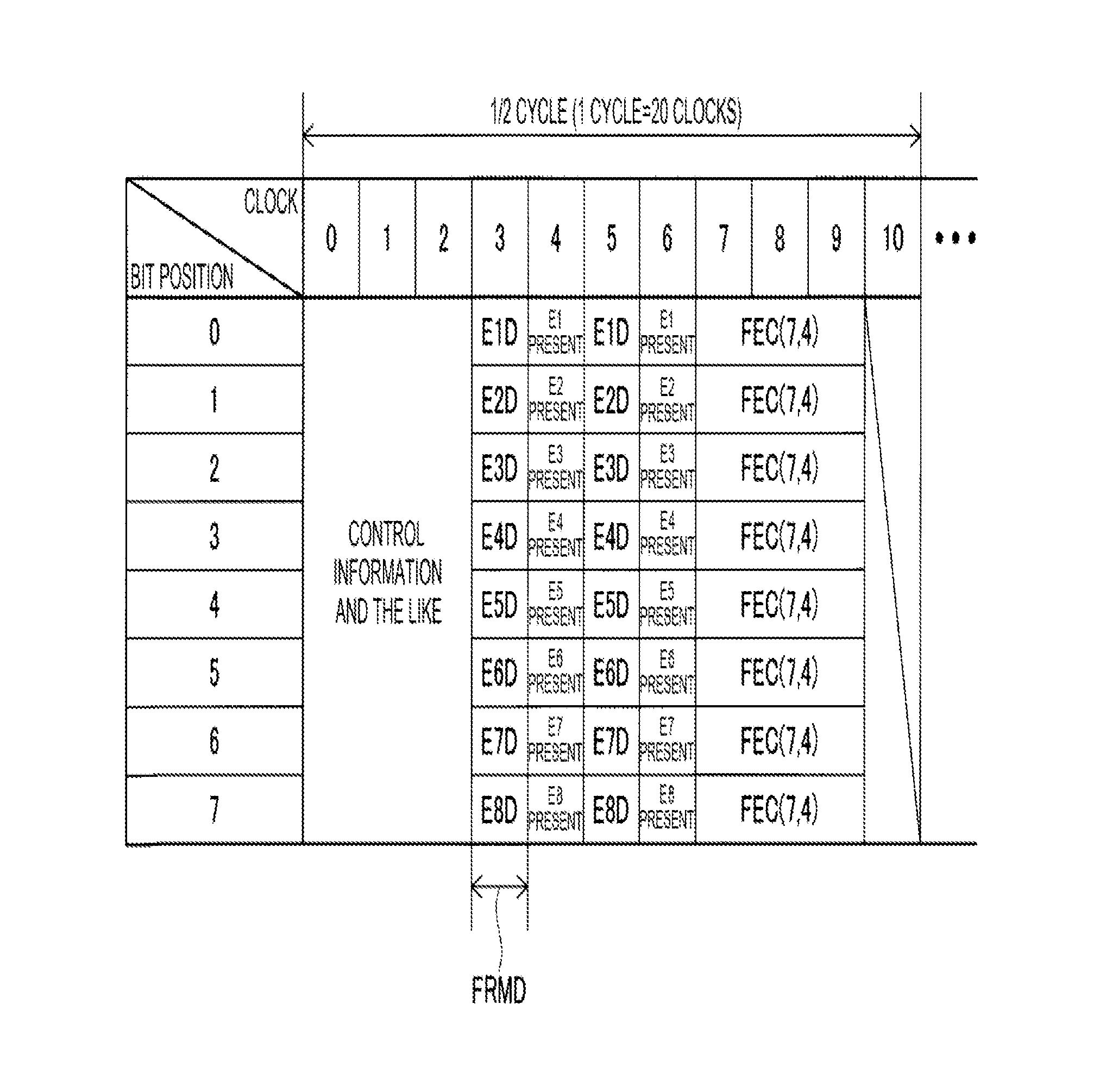

A multiplexing communication system is capable of maintaining an appropriate response speed of a control with respect to an electromagnetic motor based on an encoder signal during multiplexing and transmission of the encoder signal. A transmission data composition processing section of a multiplex communication device multiplexes encoder signals ENCD1 to ENCD8 output from a linear scale and a rotary encoder into frame data FRMD and transmits the data. The transmission data composition processing section sets the encoder signals ENCD1 to ENCD8 to bit positions of the frame data FRMD respectively corresponding to the linear scale and the rotary encoder. At the bit positions where the encoder signals ENCD1 to ENCD8 are set, the encoder signal ENCD and information showing the presence or absence of the data of the encoder signal ENCD are alternately set for each cycle of transmission of the frame data FRMD.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- H04L Class
- 23397 Applications Filed
- 19833 Patents Issued To-Date
- 84.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
