Chassis for providing distributed airflow
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 13, 2018
Issued Date -
N/A
app pub date -
Jan 3, 2017
filing date -
Jan 3, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

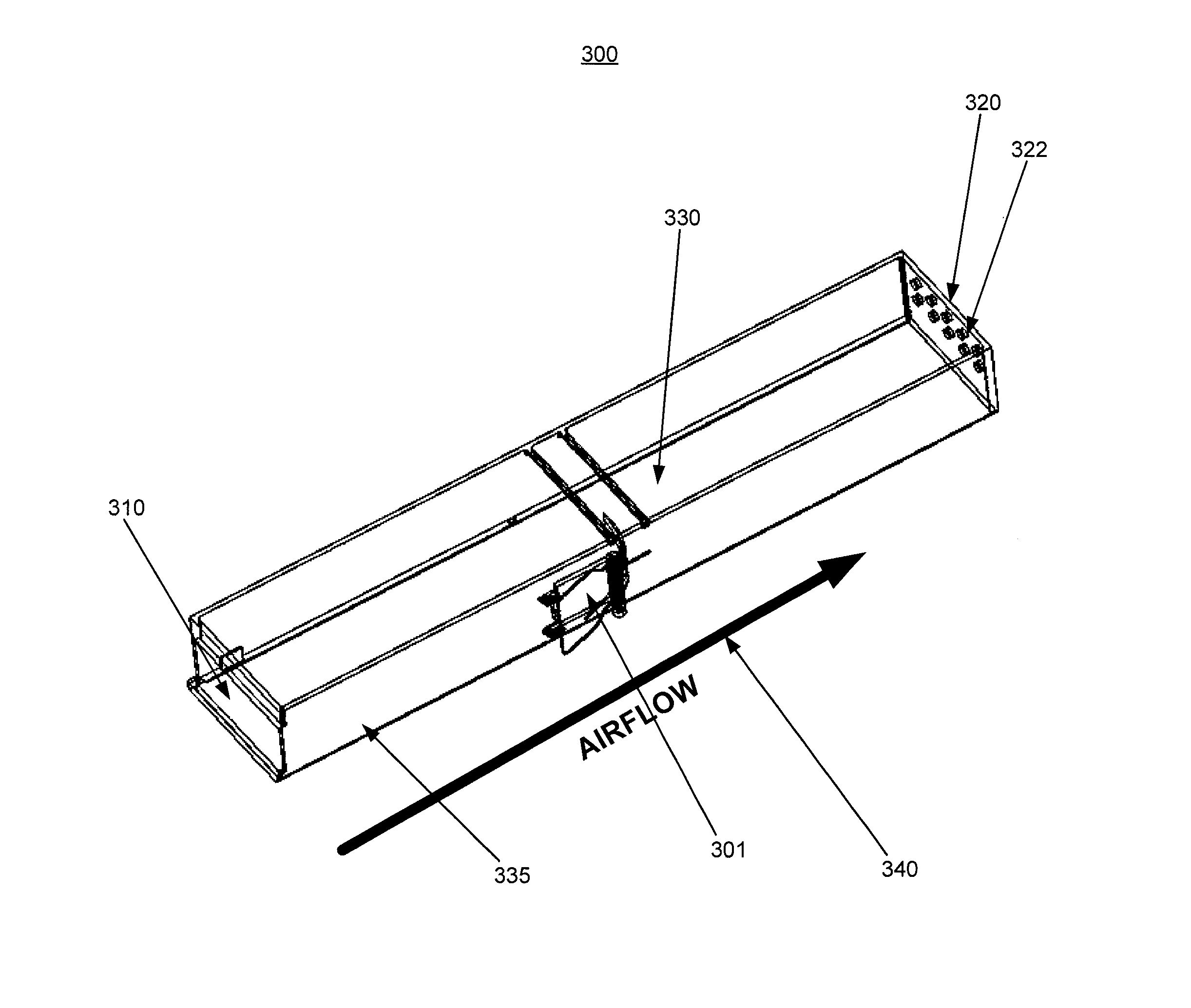

A computing system includes a chassis having an airflow entrance and an airflow exhaust, a duct structure disposed in the chassis, and a redirection mechanism located on a wall of the duct structure and extending through a cutout in the wall of the duct structure. In the computing system, the duct structure has a first end facing the airflow entrance and a second end facing the airflow exhaust. The redirection mechanism has a deflector having an inlet airfoil extending away from the duct structure towards the airflow entrance and at least one exhaust airfoil extending into the duct structure.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- G06F Class
- 61356 Applications Filed
- 46481 Patents Issued To-Date
- 75.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 13, 2029 |
